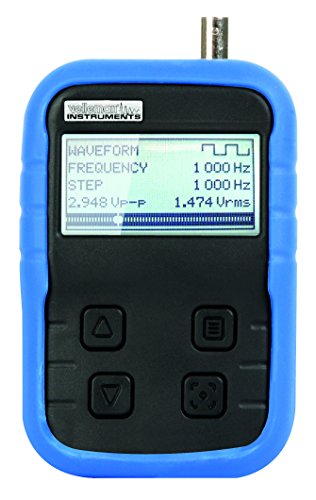

ベルマンHPG1 ポケット ファンクション ジェネレーター 信号発生器 日本語解説書付属
- メーカー
- ヴェルマン社
- ブランド
- ヴェルマン
- JAN
- 0013039209382
- メーカー品番
- HPG1
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
DDS type generator (Direct Digital Synthesis). DAC resolution: 10 bits. Frequency range: from 1Hz to 1,000,000Hz ( 0.01%). Frequency steps: 1Hz, 10Hz, 100Hz, 1kHz and 10kHz. Waveforms: sine, square and triangle. Sweep function with bi-direction option. Output voltage: max. 8Vpp. Real output level measurement: dBm / Vrms or Vpp readout (3%). Typical sine wave distortion (THD): 0.1% @ 0dB / 600 ohms. Square wave rise/fall time: typ. 0.2?s. Output impedance: 50 ohms.;Multi-language menu (Eng / Fre / Dut / Ge / Es ). White LED backlight. Charging power supply: 9Vdc/200mA. Operates on NiMH rechargeable battery pack (included). Dimensions: 2.9 x 4.5 x 1.14. Includes: Handheld Pocket Generator. Owners manual. BNC adapter, BNC male to RCA female. BNC male to 2x 4mm banana plug. USB power supply adaptor
