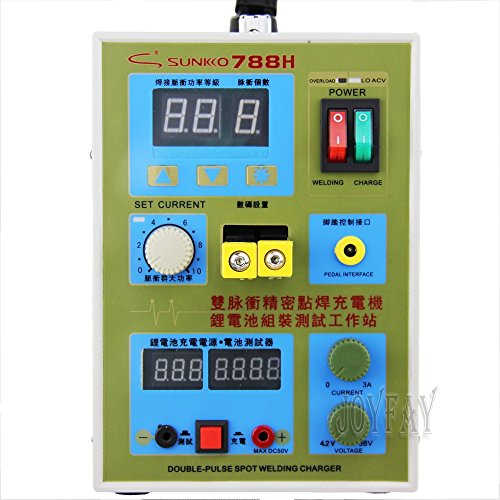

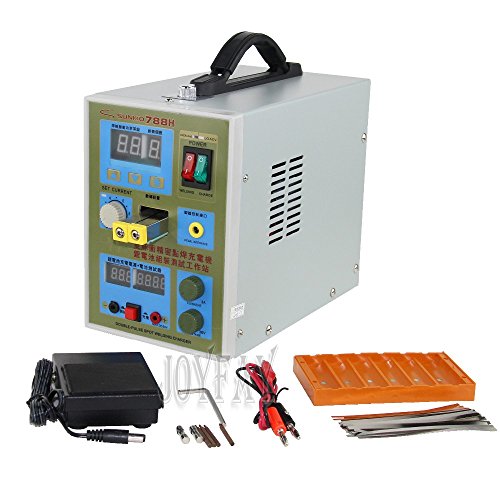

Hanchen InstrumentﾏﾄED Pulse Battery Spot Welder 788H Welding Machine for 18650 Battery Charger 800 A 0.1 - 0.2 mm 36 V with LED light

商品説明

After?our?rder?s?onfirmed,?he?roduct?ill?each?ou?ithin?--13?usiness?ays.

Description
1. Double-pulse micro-computer spot welder and battery charger;
2. Micro-computer control up to level 199 (99*1, 99*2), precision parameter setting;
3. One or two pulse welding mood selectable;
4. Has the fast setting knob of pulse serial (16 pulse), suitable for the welding of thicker material;
5. Has adjustable charger (4.2 - 36 V, 0 - 3A), convenient for the charging and test of battery;
6. The specific battery tester can test the float charge voltage, therefore, you can get the internal resistance by selecting the appropriate charging current.

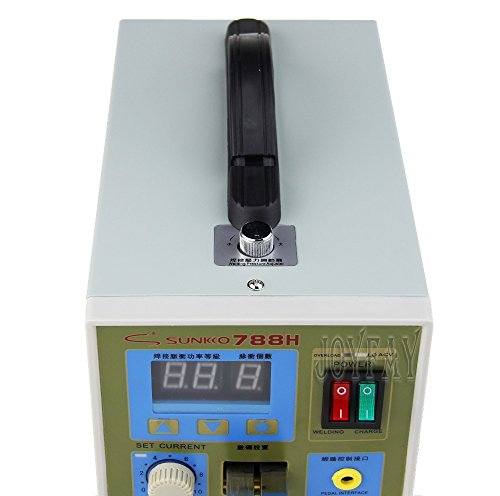

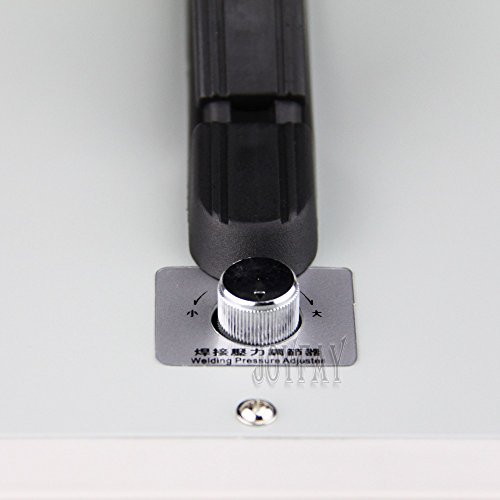

7. It have foot switch and pressure adjuster, which improves the accuracy of welding.
Specifications

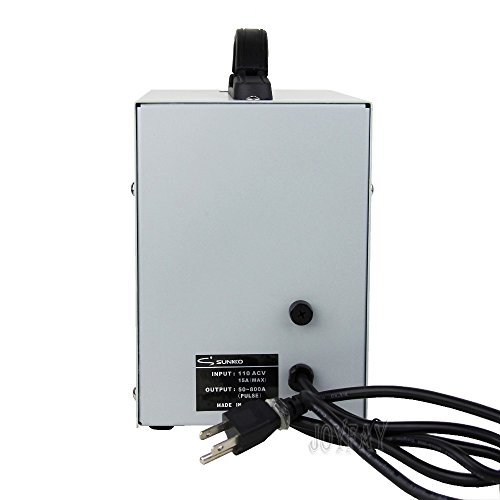

A: Spot welding machine Input Voltage: AC 220 V or AC 110 V(Please leave us a message for the voltage you need.)
Primary Current: 2 - 15 A
Welding Current: 50 - 800 A (The corresponding pulse time: 1 ms - 19ms)
B: Numerical control charger:
Charging Voltage: 4.2 - 36 V (Adjustable)
Charging Current: 0 - 3 A (Adjustable)
C: Weight: 4.3 kg
D: Dimensions: 140 x 245 x 200 mm
E: Range of sheet metal Welding Thickness: 0.1 - 0.2mm Max 0.2mm for welding pen
F: Electric Leakage Switch Requirement: 60A or more than 60A
Attention: For the requirement for electric leakage switch is more than 60 A, it is not recommended to use at home.

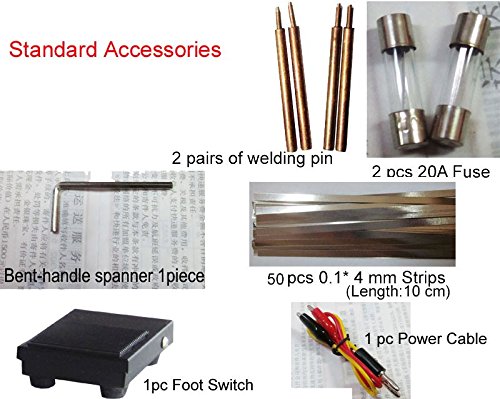

Accessories
Spot Welder:1 pcs.
Welding Pin:2 pairs.
Fuse(20 A):2 pcs.
Bent-handle Spanner:1 pc.
Foot Switch:1 pc.
Power Cable:1 pc.

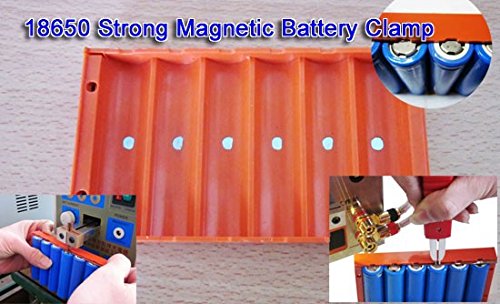

Battery Clamp:1 pc.
0.1*4 mm Straps, Length:10 cm 50 pcs.
