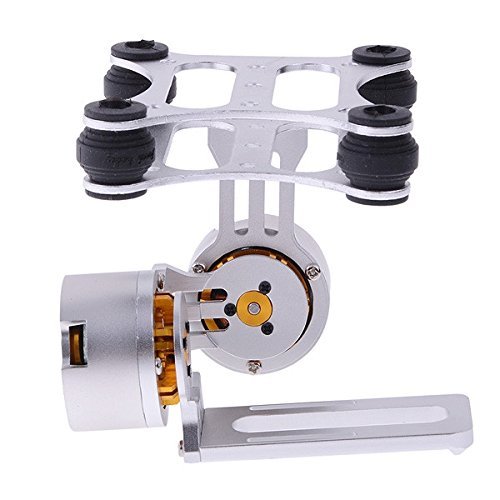

HJ 2-Axis Aluminum Brushless Gimbal PTZ with BGC 3.1 Brushless Gimbal Controller / Sensor for GOPRO FPV(Silver) [並行輸入品]
- メーカー
- A
- ブランド
- A+
- JAN
- 6922142222215
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
1) Simple structure and light weight 2-Axis brushless gimbal, with 2 brushless motor direct drive, compatible with Gopro 1, 2, 3.
2) BGC 3.1 brushless gimbal controller:
3) Micro USB connector (no FTDI needed).
4) Stabilized VBUS (USB port).
5) Pin layout optimized GND, A1 and A2 GND, multi-port, 5V.
6) 2 outputs for brushless motors.
7) 4 receiver inputs.
8) 6 analog inputs.
9) Serial port available.
10) Power LED (blue).
11) Small LEDs on the USB.
12) Standard MK style mounting holes 45 mm*45 mm.
13) 2 instead of 4 glass diodes SOT23.
14) 5V better stabilized.
15) Shifter lever on the I2C Bus (3.3V to 5V).
16) MPU6050 sensor module:
17) Power supply: 3~5V;
18) Gyroscope range: + 250 500 1000 2000 °/ s;
19) Acceleration range: +/- 2, +/- 4. +/- 8, +/- 16g;
20) Communication: Standard IIC communication agreement;
21) Chip built-in 16 bit AD converter, 16 bits of data output;
22) 55Pin Pitch: 2.54mm;
23) Material: Aluminum + aluminum alloy
24) Size: 15 cm x 15 cm x 18 cm
Packing List
- 1 x Aluminum gimbal with 2 motors
- 1 x BGC 3.1 brushless gimbal controller
- 1 x MPU6050 sensor
- 1 x Connecting cable (30cm)
