AGPtek? 4.3" TFT LCD Monitor Car Vehicle Backup License Plate IR Sensor LED Camera Combo Kit with 6m Video cable [並行輸入品]
- メーカー
- AGPtek
- JAN
- 0848454072590
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明

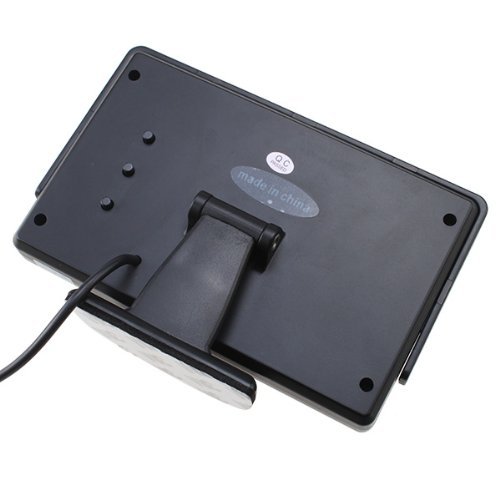

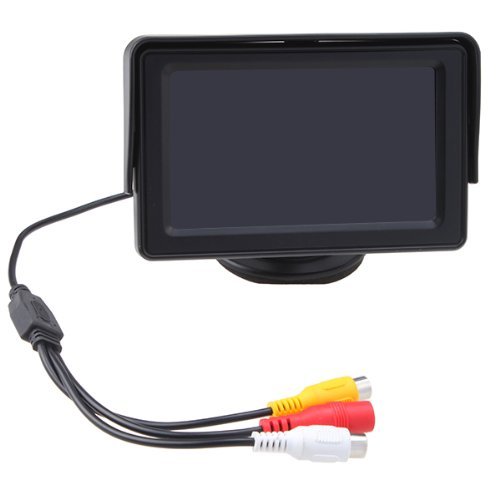

LCD monitor features:
Displays: 4.3inch. high-definition screen, make the image clearer, more vivid colors
Resolution: 480 (H) x 272 (V)
Ultra-low power consumption, to prevent over heat.
Video Input: AV1/AV2 video input, AV1 VCD / DVD video output signal (system default), AV2 connection reversing camera (reversing automatically switch to)
Signal format: PAL / NTSC / AUTO. Compatible with all signal formats.
Rated Voltage: DC 12V

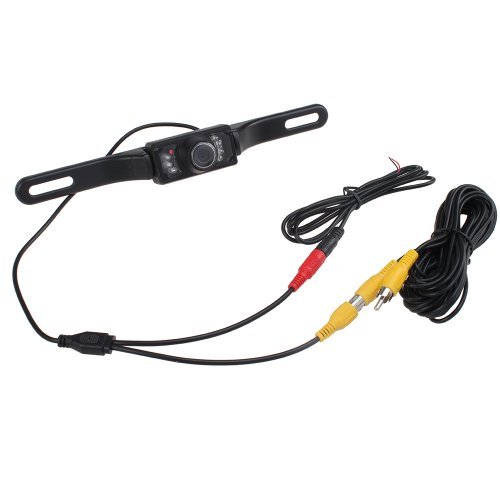

Camera features:
Image Device: PC7070
Resolution: 420 TV line
Lens angle: 3.6mm(92deg)/2.8mm(120deg)
S/N Radio: better than 48db
Video output: RCA connector, 1.0vp-p,75ohm
Power: 12V DC(+/-10%)
Waterproof grade: IP68
Effective Pixels: 628x586pixles/PAL,510X496pixels/NTSC

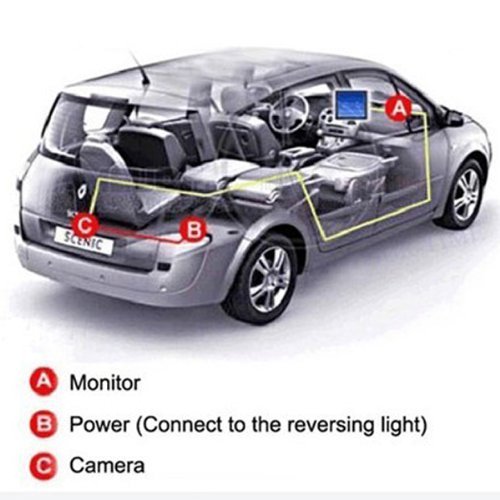

Installation:

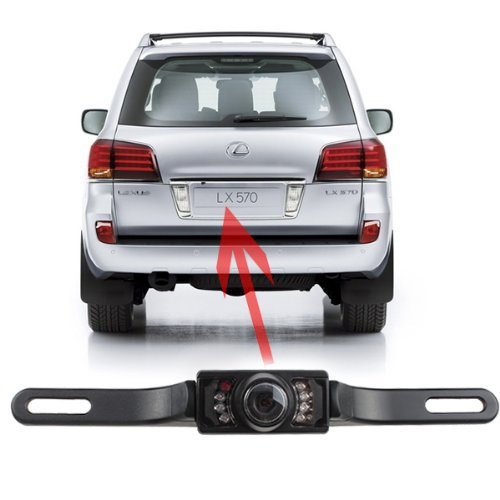

1: Mount the camera on license plate.
2: Connect power cord to connect to your vehicle DC 12V power system.
3: Connect the video output (yellow) of the camera to the display in your vehicle
4: power provided through Vehicle's 12v System, offers easy installation, but additional vehicle wiring knowledge may be required.
Package including:
1 x 4.3 inch TFT LCD Monitor
1 x Camera
2 x Power cable
1 x 6m Video cable
1 x user manual
