AIHOME 10mW 12KM Visual Fault Locator Mini Optical Power Meter Optic Cable Tester [並行輸入品]
- メーカー
- AIHOME
- JAN
- 0709619588571
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
Specification

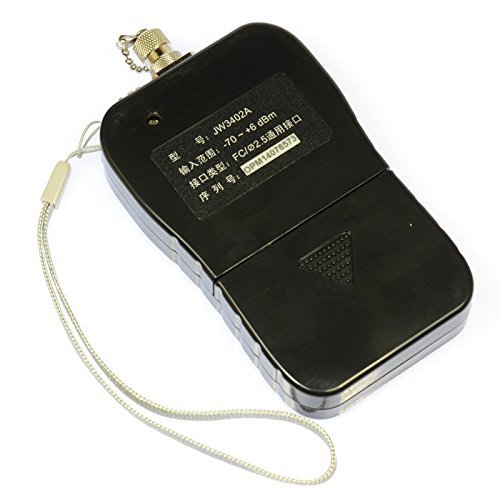

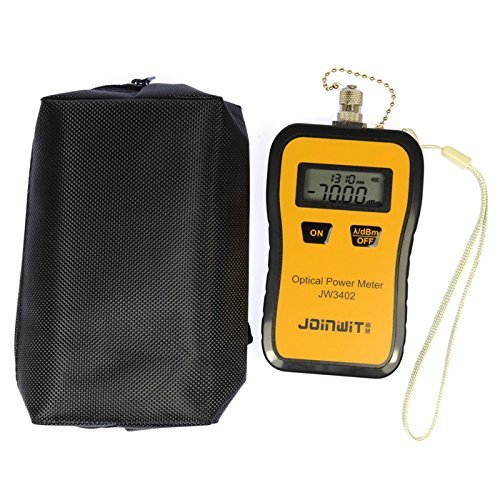

Mini Optical Power Meter
Wavelength(nm):850,1300,1310,1490,1550,1625nm
Detector :InGaAs
Measurement Range (dBm): -70~+6
Uncertainty:±5% Calibrated Wavelength(nm):850,1300,1310,1490,1550,1625nm
Resolution(dB):0.01
Optical Connector:FC(interchangeable SC,ST) / as well as 2.5mm universal
Power Supply:Alkaline Battery(3xAAA)Without Batteries
Battery Operating Time:360 hours with three 1.5V batteries
Operating Temperature(°C):-10 ~ +60
Storage Temperature(°C):-25 ~ +70
Relative Humidity:0 to 95% (non-condensing) Dimension(mm):105X65X20
Weight(g):90

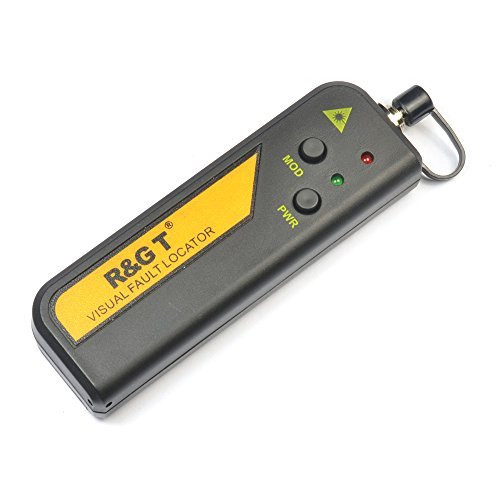

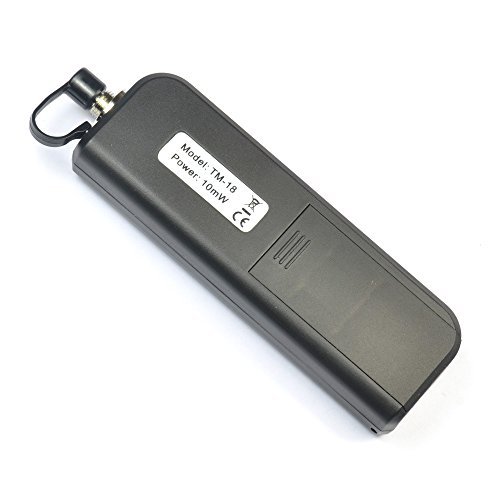

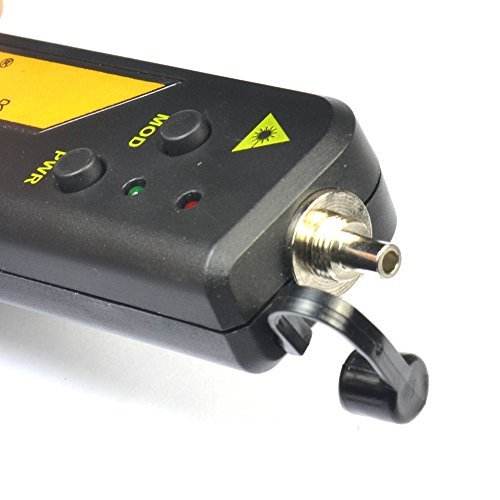

10mW 650nm Pen-type Visual Fault Fiber
Wavelength :650nm±10nm
Emitter Type : FP-LD laser
Output power : 10mW
connector : 2.5mm universal adapter
Working mode : Both CW and Pules available
Operating temperature : -10~+45 °C
Storage temperature : -40~+70 °C
Power : 2pcs AA battery
Working hours : ? 60
Weight : 100g (excluding batteries)
Dimension (mm) : 220 X 27

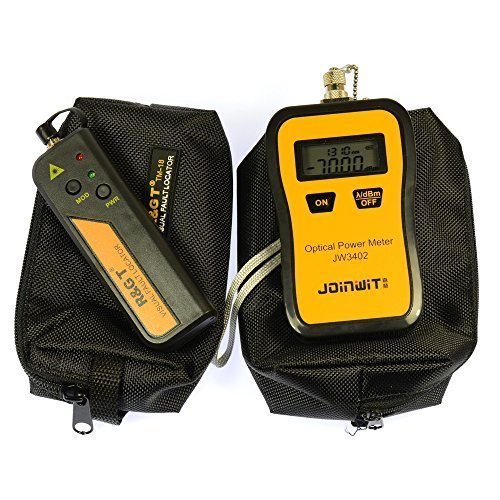

Package Includes:
1 x Optical Power Meter
1 x Black Carry Bag
1 x Fiber Checker
1 x User manual (English)
1 x Black bag
