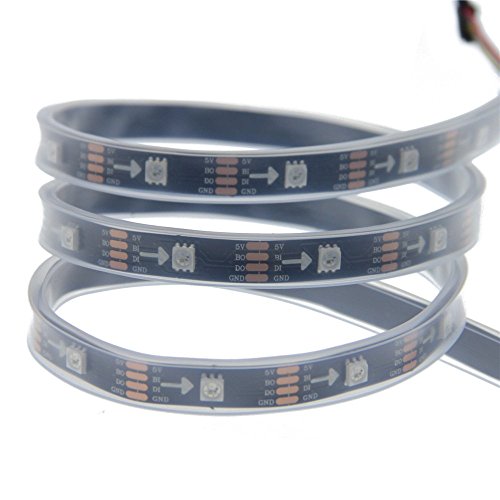

ALITOVE WS2813 (Upgraded WS2812B) Individually Addressable 5050 SMD RGB LED Flexible Strip Light Signal break-point continuous transmission 3.3ft 30 Pixels Waterproof IP67 Black PCB 5V DC [並行輸入品]

商品説明

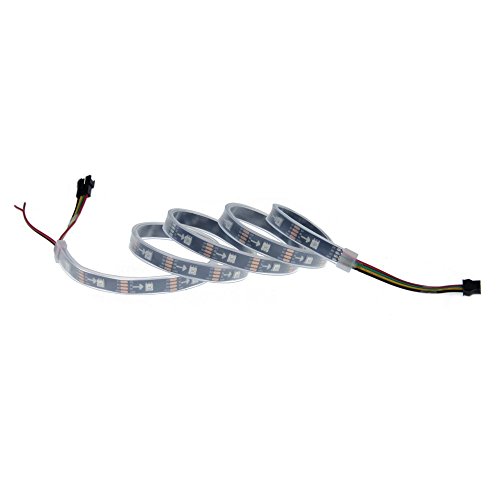

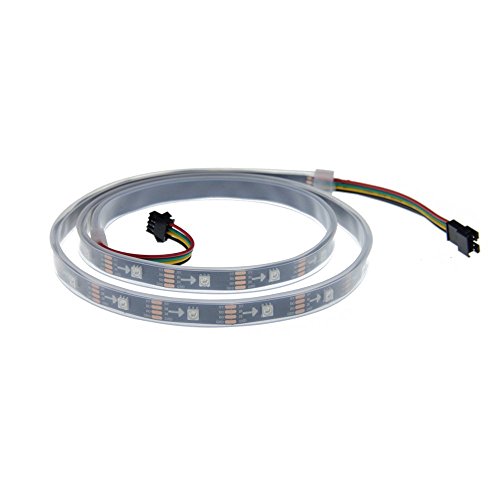

Connect freely. Comes with 4-pin JST SM connectors and separated power/ground wires on both ends, which makes it easy to hook up or wire up for power.. Parameter
Model: AL-WS2813-30BK-WP
Light source: 5050 RGB LED
Led Qty: 30pcs per meter
Wave length (NM): R,650nm ; G,520nm ; B,460nm
The gray level: 256
Color: full color (24-bit )
View angle:120°
Voltage: DC 5V
Power: 9W/M
Waterproof: waterproof IP67
FPCB board color: Black
Dimension: 1000*12*4mm
Package:1m/roll
Life span:≥50000hrs

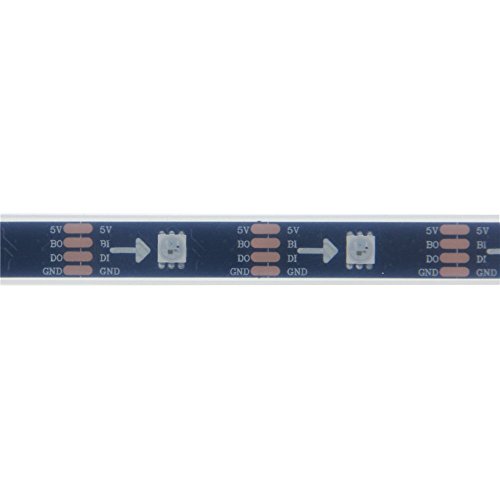

Pin Function
5V: Power Voltage, connect to "+5V"
DO: Control data signal output
DI: Control data signal input
BO: Backup control data signal output
BI: Backup control data signal input
GND: Data &Power Grounding

Technical Features
1) The control circuit and RGB chip are integrated in a 5050 components, to form an external control pixel.
2) The control circuit and the LED share the only power source.
3) Using the built-in signal reshaping circuit to achieve the signal waveform shaping, and no distortion of waveform of signal takes place.
4) Built-in power-on reset and brown-out reset circuits.
5) Port scanning frequency reaches to 2KHz/s.
6) Serial cascade interface. Data receiving and decoding depend on just one signal line.
7) Dual-signal wires version, signal break-point continuous transmission.
8) If the transmission distance between any two points is less than 3m, another circuit is not needed.
9) When the refresh rate is 30fps, cascade numbers are far more than 1024 points.
10) Data transmitting speed is up to 800Kbps.

Package
1x 3.3ft 30 pixels WS2813 led strip (Power supply and controller are not included)
