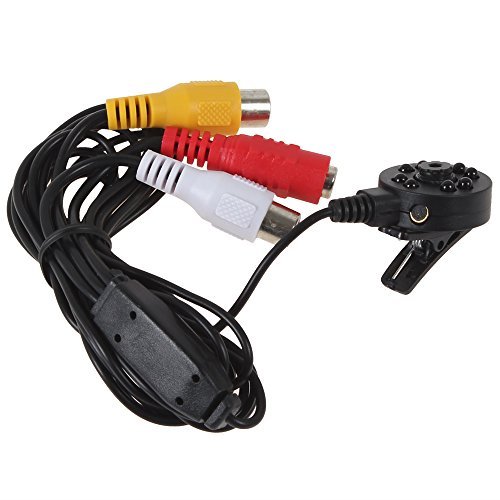

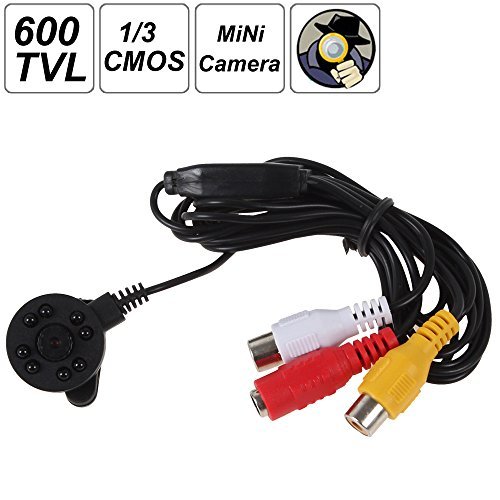

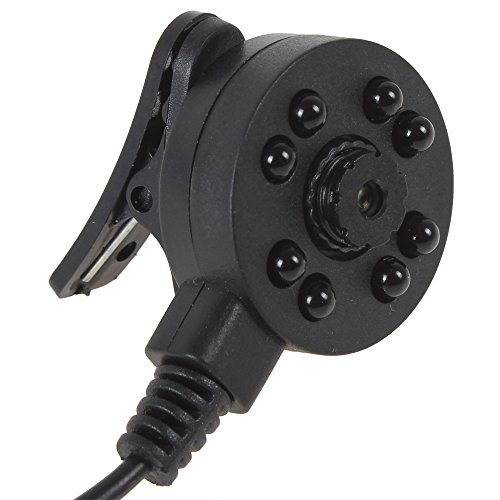

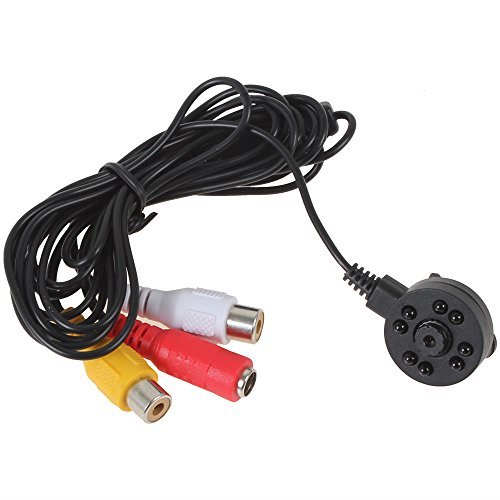

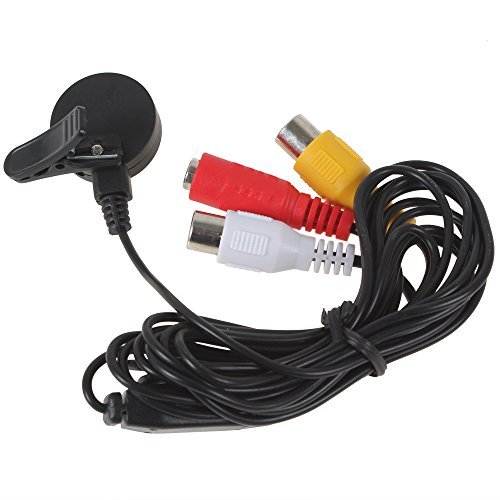

mini camera - BANGWEIER XL-L1523CP4 HD 1280 x 960 600TVL 1/3 Inch CMOS Sensor Night Vision Mini Camera with 8 IR Lights [並行輸入品]

商品説明

Features:
- Direct output of AV video, can be displayed by connected to the TV display device, or connected to the video recorder for recording.
- Widely used for ATM, jewelry shop, finance room, child room and many short distance important indoor conditions.
Operations:
- Connect with power adapter and video output connector.
- Connect the yellow AV video and white audio output with the monitor.
- Connect with the DVR or video card if you want to record the video and audio.
Model: XL-L1523
Camera Lens: 6mm
Image Sensor: 1/3 Inch CMOS
Resolution: 1280 x 960
Pixel: 2.0 Mega pixel
Horizontal Resolution: 600TVL
Minimum Illumination: 0.5LUX
Positive S/N Ratio: >48dB
Backlight Compensation: +0.7
Gama Characteristic: 0.45
Image Color: Color / B & W
TV Format: NTSC / PAL
Video Output: 1Vp - p 75Ohm
Frame Speed:
- 60f/s NTSC
- 50f/s PAL
IR Quantity: 8
Night Vision Distance: 5m
Infrared Wavelengths: 940nm
White Balance: Auto
Electronic Shutter: AT
Synchronization System: Interior synchronization
Power Consumption: DC12V/1A、2A
Operating Temperature: - 10 ~ + 50 centigrade
Color: Black
Camera Size(Dia x H): About 25 x 10mm
Product Weight: 32g
Package Weight: 48g
Package Size( L x W x H): 68 x 50 x 50mm
After Sales Service: 1 Year Warranty
Package Weight : 48(g) / 1.69(oz)
Package Dimensions(Length*Width*High) : 70(mm)*60(mm)*58(mm) / 2.76(in)*2.36(in)*2.28(in)

Retail Packaging: Yes, Colored Box
Package Include:
1 x Mini Camera
1 x User Manual
