CNC Engraving Machine Rotary/Rotational Axis 80mm/3-jaw chuck 4th Axis Tailstock

商品説明

Description

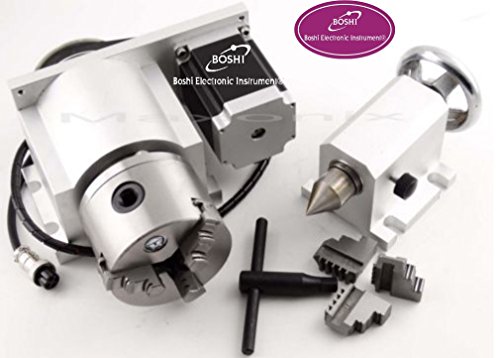

Package includes 1 x 3A 57 Stepper Motor,1 x 80mm 3燡aw燙huck,1 x Holding燗luminum frame,? x燭ailstock,1 x Belt.

Technical Datas
Rotational Axis:
Chuck type: 80mm self-centering 3 Claw Chuck
Chuck center height?49MM
Transmission ratio 1:6 (1200 pulses / revolution) synchronization gear reducer
3.5A 4 lead 57 stepper motor(1.8 Degree Step Angle)
Stainless steel dust cover
processing load 30KG
Anodized rust treatment
4-pin connector 1 = A +, 2 = A-, 3 = B +, 4 = B-
Dimensions 170*200*90
MACH3 setup instructions: 1 degree required Pulse
The formula is: 360 / subdivision stepping angle * Drive * Transmission ratio / 360 = MACH3 Pulse

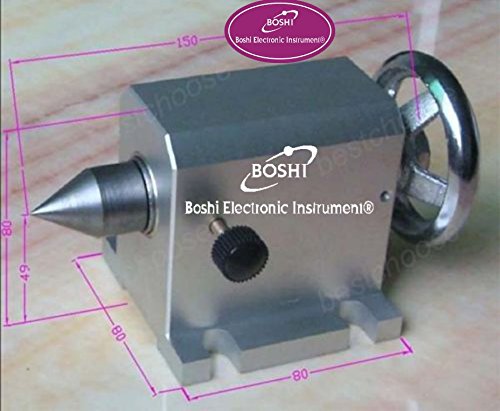

Tailstock for 4th-Axis:
Frame Material :Aluminum Alloy
Outter Dimension(mm): 150*80*80mm
Center Height: 49mm
Anti-rusty coating cover
3.0 inch rotary handwheel
Tailstock stroke limit & position self-lock

Note
All products have been checked and packaged in good condition before shipping.
After your order is confirmed,the product will be sent to your hands for 7-13 workdays.
If you have any question, please feel free to contact with us . We will try our best to give you a satisfactory solution.
