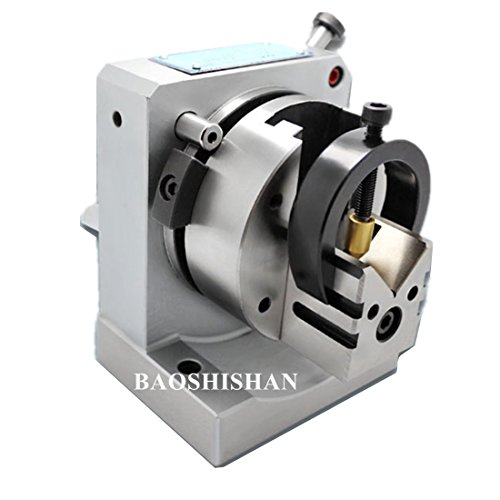

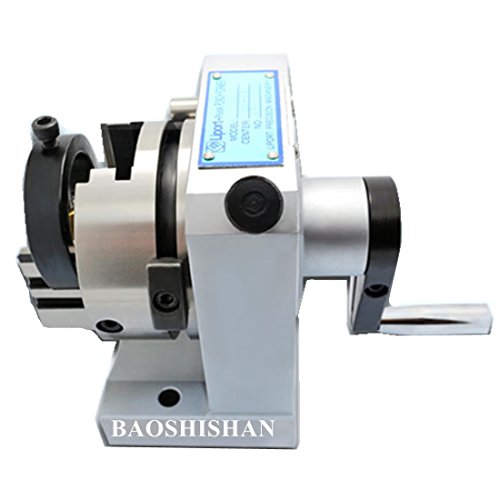

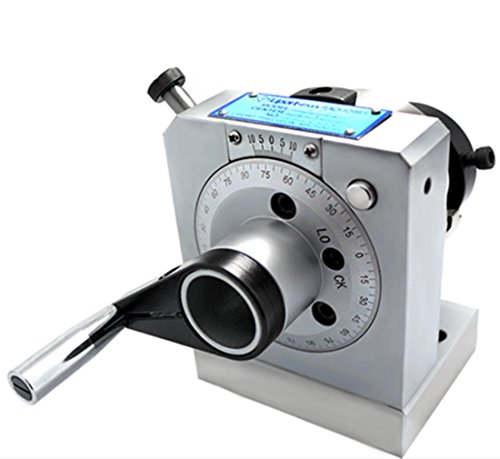

PFB One Way Punch Forming Device High Precision Punch Grinding Machine with Accuracy within 5um for Surface Grinder
- メーカー
- BAOSHISHAN
- JAN
- 5205889266874
- メーカー品番
- TL-220
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
Boshi Electronic Instrument
Technical Datas
Center height: 76-80mm

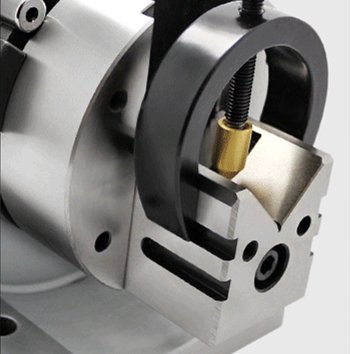

V groove clamping diameter: ?3-30mm
V block up and down adjustment amount: 30mm

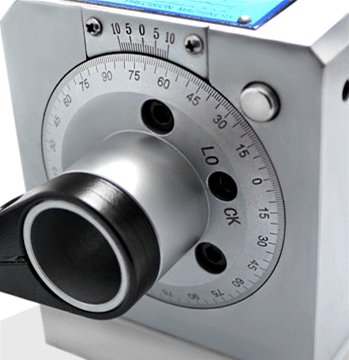

Number of dial plate teeth: 24DIV15 degrees
Clamping accuracy rotary 50mm:less than 0.005
Through hole diameter: ?30mm
Trimming wheel maximum diameter: ?200mm
Trimming wheel R arc maximum convex arc radius: R48mm
Trimming wheel R arc maximum concave arc radius: R100mm
Weight: 10kg
Note
All products have been checked and packaged in good condition before shipping.
After your order is confirmed,the product will be sent to your hands for 7-13 workdays.
If you have any question, please feel free to contact with us . We will try our best to give you a satisfactory solution.
特記事項
- 1.Easy to carry: small and exquisite, compact structure
- 2.Sturdy and durable:has the function of trimming wheels
- 3.Safe and reliable:equipped with center perforation and convenient for processing
- 4.With bow arm: used to trim various grinding wheel angles
- 5.High accuracy: the adjustment accuracy is less than 5um
