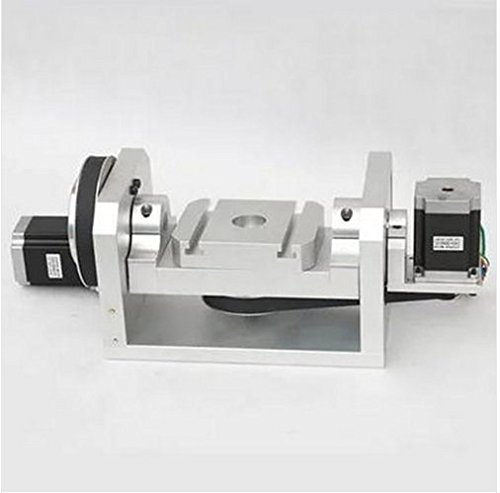

CNC dividing head, A-axis, rotation axis, fourth axis,fifth axis (Not with a chuck) Size150mm x155mm x440mm

商品説明

The product usually takes 7--13 business days to arrive to your hand after your order is confirmed

Product Description
The fourth axis engraving machine, the fifth axis
The fourth axis gear ratio: 8: 1 (57 two-phase 4-wire 3A stepper motor)
The fifth axis reduction ratio: 6: 1 (57 two-phase 4-wire 3A stepper motor)
Chuck: K01-100 manually chuck
Center height: 98MM
Table size: 100MM x125MM
Dimensions: Length Width 150MM x155MM x440MM
Weight: 11KG

The fourth axis pulse equivalent settings:
Mach3 system settings: 1 required number of pulses
(1 ring motor pulse number x drive fine score x reduction ratio) ?360 degrees
For example, the two-phase motor 57, the number of segments 16, reduction ratio 50:1
(200 ?16 ?50) ?360 = 444.44444444)
Weihong system settings: 1 pulse walk angle
360 ?(1 ring motor pulse number x drive fine score x reduction ratio)
For example: 57 two-phase motor, the number of segments 16, reduction ratio 50:1
360 ?(200 ?16 ?50) = 0.00225
If X or Y axis instead of the algorithm is:
Perimeter ?(1 ring motor pulse number x drive fine score x reduction ratio)
Engraving of different sizes of round bars, equivalent to be provided
