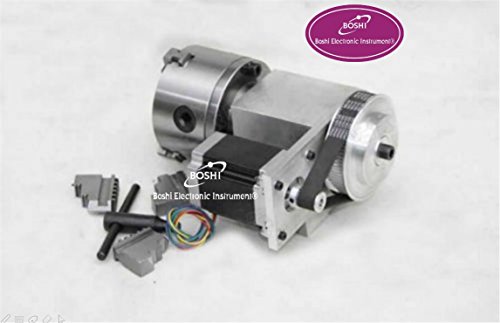

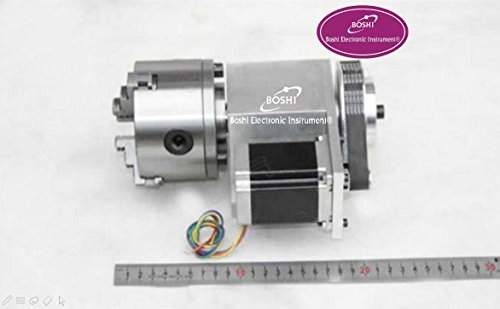

K12-100 CNC Engraving Machine Rotary/Rotational Axis 100mm/4-jaw chuck 4th Axis Ratio 6:1
- メーカー
- BAOSHISHAN
- JAN
- 7730738945443
- メーカー品番
- CY-185
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
Technical Datas:
Model Number:K12-100
Chuck:K12 100MM 4-jaw chuck
Height:115MM
Angle:0.3 degrees/step
Speed reducing ratio:6:1 (Synchronous belt)
Synchronous belt:3mm(tooth width) 336mm(belt length) width 15mm
Stepper motor:Two phase 57 NEMA23 stepper motor
Areas of Application?
CNC 4th axis ( A aixs, Rotary axis ) with chuck for cnc router cnc miiling machine.
Hollow shaft Rotary axis 4 Jaw 100mm chuck CNC 4th Axis CNC dividing head for cnc router.
Rotation 6:1 A axis for Mini CNC router/engraver woodworking engraving machine.
Note
All products have been checked and packaged in good condition before shipping.
After your order is confirmed,the product will be sent to your hands for 7-13 workdays.
If you have any question, please feel free to contact with us . We will try our best to give you a satisfactory solution.
