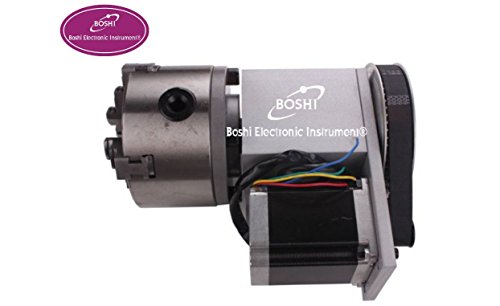

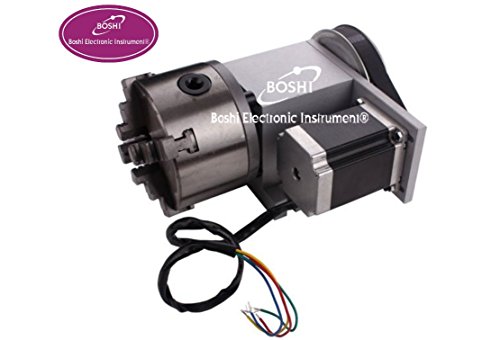

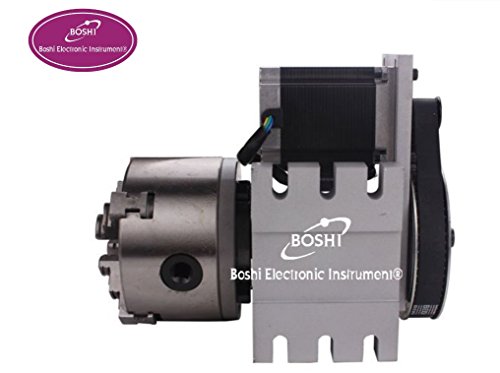

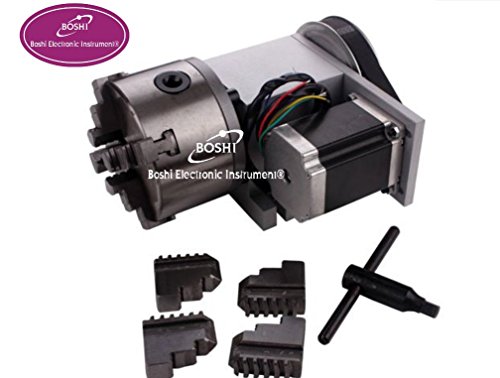

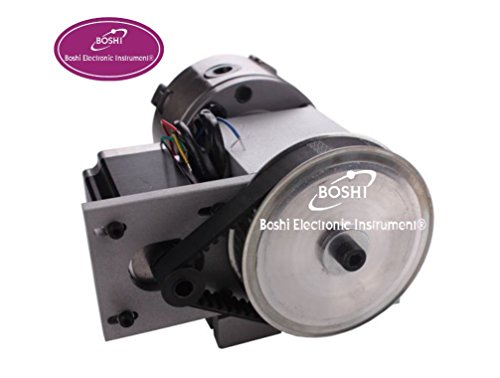

K12-100 Hollow Shaft Engraving Machine Rotary/Rotational Axis 100mm/4-jaw chuck 4th Axis Ratio 6:1
- メーカー
- BAOSHISHAN
- JAN
- 7730738945528
- メーカー品番
- CY-193
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
Application Field
CNC 4th燼xis ( A aixs, Rotary axis ) with chuck for cnc router燾nc miiling爉achine.
Hollow shaft Rotary axis牋4 Jaw?00mm chuck燙NC 4th Axis CNC dividing head for cnc router.
Rotation 6:1 A axis for Mini CNC router/engraver woodworking engraving machine.
Technical Datas
Model Number:K12-100
Chuck:K12 100MM 4-jaw chuck hollow shaft
Center height:65MM
The output diameter of shaft:21mm
Angle:0.3 degrees / step
Speed reducing ratio:6:1
Stepper motor:Two phase 57 NEMA23 stepper motor
Size:210MM*168MM*115MM
Note
All products have been checked and packaged in good condition before shipping.
After your order is confirmed,the product will be sent to your hands for 7-13 workdays.
If you have any question, please feel free to contact with us . We will try our best to give you a satisfactory solution.
