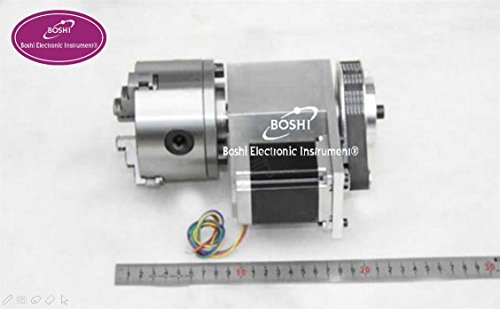

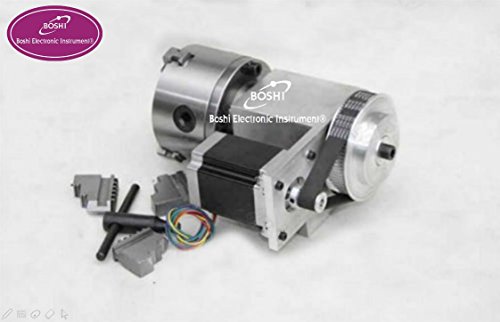

K12-100 CNC Engraving Machine Rotary/Rotational Axis 100mm/4-jaw chuck 4th Axis Ratio 4:1

商品説明

Technical Datas:
Model Number:K12-100
Chuck:K12 100MM 4-jaw chuck
Clamping range:negative direction (2~30mm), Positive direction(30~80mm)
Center height:65MM
The output diameter of shaft:20mm
Angle:0.45 degrees/step
Speed reducing ratio:4:1 (5M Synchronous belt)
Shaft diameter:12.7mm
Stepper motor: Two phase 4.5A 86mm NEMA34 steppermotor
Size:210*210*115mm(length*width*height)

Areas of Application?
CNC 4th axis ( A aixs, Rotary axis ) with chuck for cnc router machine.
hollow shaft Rotary axis 4 Jaw 100mm chuck CNC 4th Axis CNC dividing head for cnc router.
Rotation 4:1 A axis for Mini CNC router/engraver woodworking engraving machine.
