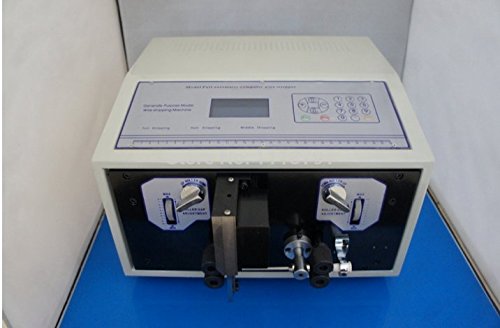

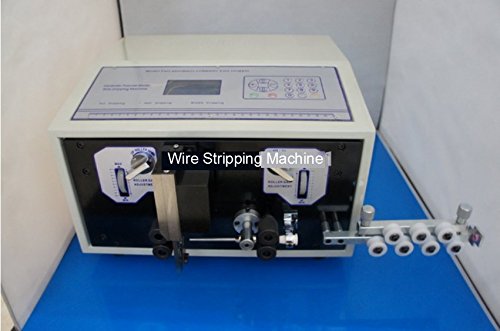

SWT508-SD 220V/110V Fully automated Wire Stripping Machine Wire Cutting Machine Thick Line Stripping Machine LCD Display Microcomputer Integrated

商品説明

The product usually takes 7--13 business days to arrive to your hand after your order is confirmed

Product Description
1. Mechanical and electrical Microcomputer integrated;
2. Fully automated;
3. LCD display;
4. Exquisite outlines, simple operation and maintenance, stable performance, fast speed, and high accuracy;
5. Cable length can be set free.

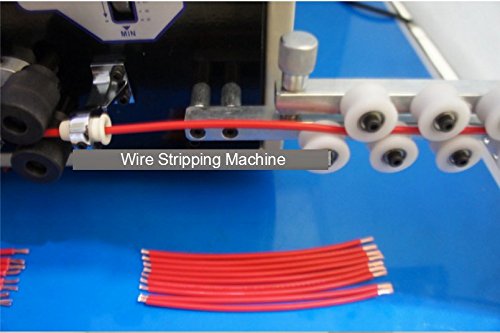

6. Can peel wires with different thickness;
7. Shear function of Cable, sheathed cable, power cord and casing.
8.Products are equipped with instructions in English, easy to understand.

Technical Datas
Model:SWT508-SD
Power Supply:AC 220V/ 50Hz; AC 110V/ 60Hz ?Optional,燽y燿efault,爓e爓ill爏hip燼ccording爐o爐he爒oltage爋f爕our燙ountry)
Dimensions:390 x 350 x 255 mm

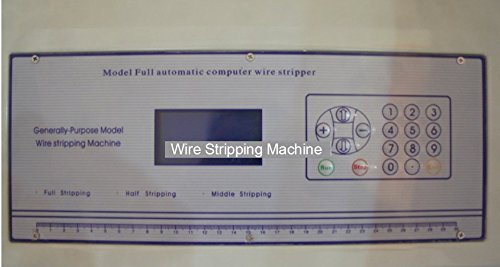

Display:In English and Chinese LCD display interface
N.W. 30 kg
G.W.35 kg
Power:200 W
Cutting Length :1 - 9999 mm
Cutting Tolerance:(0.2 ?0.002 ?L) mm
Cut Error:May be amended
Stripped Length:Thread 0-35, line end 0-15mm
Intermediate Stripping Cut:11 Department stripping
Cutting the Line Core Cross Section:0.1 - 4.5 mm2 (AWG14 #-AWG32 #)
Catheter Maximum Diameter:6
Appropriate Stripping Wire:PVC / Teflon / Silicone Cable / Wire Glass Fiber
Blade Material Hard tungsten:steel (imported white steel optional)
Stripping speed (/ h):L = 100mm, 3000-8000pcs / h (high yield)
Drive Mode:Four-wheel drive
