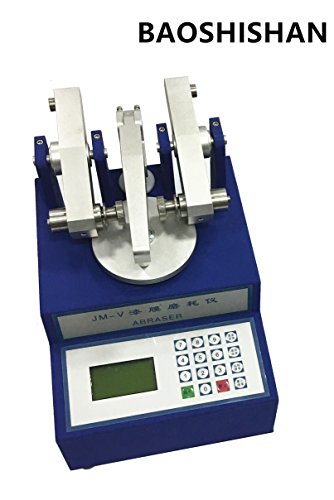

JM-V Paint film Abrasion Tester abraser Rotational Abrasion Tester

商品説明

The product usually takes 7--13 business days to arrive to your hand after your order is confirmed

Product Description
Abrasion Tester is applicable to determine abrasion resistance performance of various coatings. It is also used to determine abrasion resistance of paper, plastic, textile fabric, decorations, etc. The principle of abrasion derived by the test sample, turning on a vertical axis, against the sliding rotation of 2 Abrading Wheels. The wheels are driven by the sample in opposite directions about a horizontal axis displaced tangentially from the axis of the sample One of the abrading wheel rubs the specimen outward toward the periphery and the other wheel, inward to the centre. The area of abrasion from a pattern of crossed arcs of about 30sq.cm
The degree of abrasion for the specimen also depends on the load force(500g,750g or 1000g on each arm)being acted onto the axial of the 2Arms,which has a load pressure of 250g
It confirms to DIN 52347 53109 53754 53799
ISO 5470, 9352, 3573, 4586-2,7784-2
ASTM C217, D1044, D3389,D4060,D5342

Technical Datas
power:25W
Rotary disk revolution:60+-2r/min
Specimen chassis:diameter100mmxdiameter8mm(center hole)x3mm
Dimension of abrasive sheet:diameter50mmxdiameter16mm(center hole)x13mm
Load weight:500g 750g 1000g
Overall dimension: 220x280x300mm
