ADM-II Auto Draw Down Machine Fineness Gauge Scraper Machine Speed Pressure Adjustable

商品説明

Boshi Electronic Instrument

Description

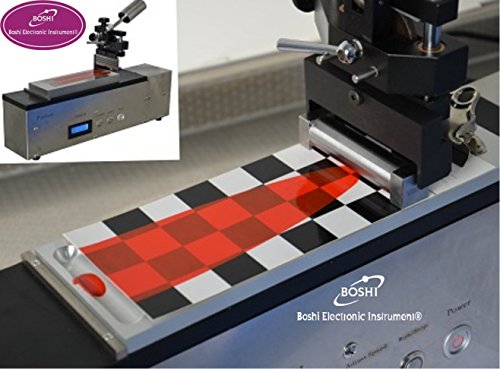

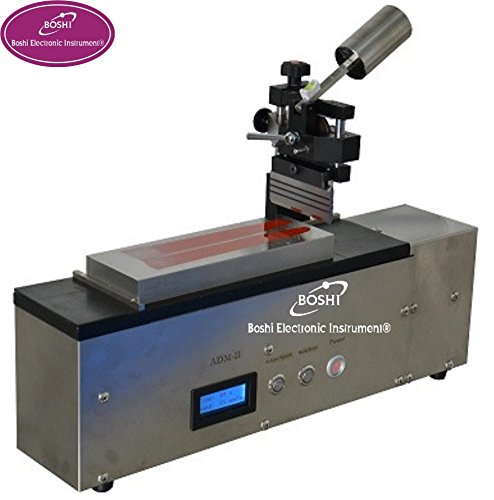

Now get more consistent draw downs on grind gauges using the new ADM-2 Automatic Draw down Machine for Grind Gauges.
昍emoves Operator Variables
昐mooth motorized scraper movement
昍igidly held scraper provides consistent scraper angle.
旵onsistent and accurate scraper force adjustable from 1.75 to 6 Kg's (3.5 to 13 pounds).
旳llows less operator training and supervision on proper grind gage use.
昒ses existing grind gages and scrapers from your current supplier.
The speed of the ADM-2 is adjustable from 10mm to 100mm per sec and is for use with liquid and paste coatings.
The scraper is held at an 85-degree angle. This allows using each side of the scraper twice, giving in effect a scraper with four edges instead of just two, which doubles the life of each scraper compared to a 90-degree angle. However, 90-degree versions are available by special order.

Technical Datas
Power: 220V AC 50Hz
Speed Range:10-100mm/s
Loading Weight:1.75KG to 6KG
Draw Down Size:Max. 250?10mm
Dimensions:510?10?05mm
Shipping Weight:20KG
