BQLZR Intelligent Pir Infrared Motion Body Sensor Detector Module Low DC 4.5V- 20V [並行輸入品]

商品説明

100% Brand new,never used
Item's color might be different from the picture because of the aberration.
This infrared sensor module with control circuit board, adjustable sensitivity and holding time,suitable for the field of security,toy,automation control etc.
Features:
With high sensitivity,reliability,ultra-low voltage operation
Automatic sensor:to enter the sensor output range is high, people leave the sensor range of the automatic delay off high,output low

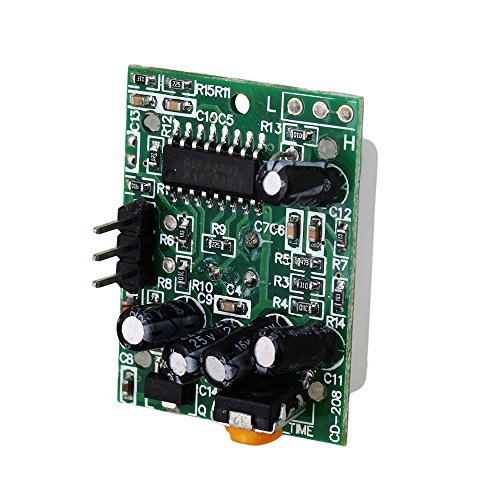

Infrared sensor with control circuit board.

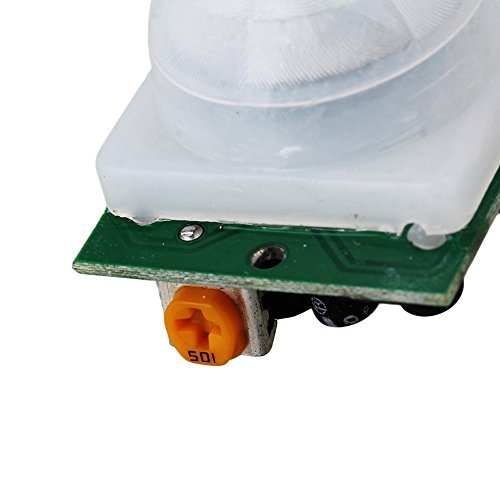

The sensitivity and holding time can be adjusted.
Detecting Range:Approx. 7m / 23 feet.
Detecting Angle:Less than 100 degrees.
Working Voltage Range:DC 4.5V- 20V.
Quiescent Current:Less than 50uA.
Level Output Voltage:High 3V / Low 0V.
Working Temperature:-15 to +70 degrees C.
Trigger Method:L unrepeatable trigger/H repeatable trigger.
Delay time:5-200S(adjustable) range can be made zero seconds-several minutes
Block Time:2.5S (default) can be made a few tenths range
tens of seconds
Size:3.3cm x 2.5cm x 2.5cm.
Applications
1,Security Products
2,the human body sensors toys
3,the human body sensor lighting
4,industrial automation and control,etc.
It can automatically and quickly open various types of incandescent,fluorescent lamps,buzzer,automatic doors, electric fans,automatic washing machine and dryer
Machines and other devices,is a high-tech products. Especially suitable for enterprises,hotels,shopping malls, warehouses and family aisles,corridors

Package Included:
1x Infrared PIR Sensor Detector Module
