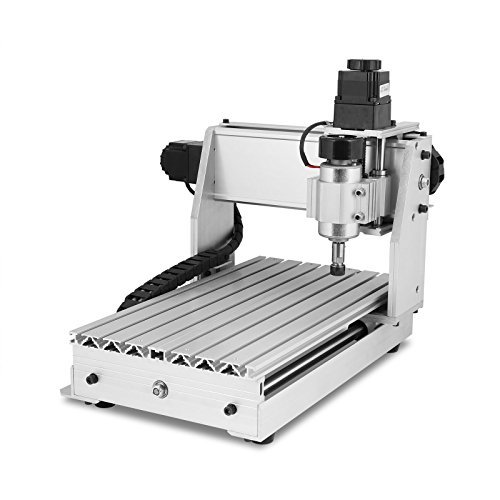

BestEquip CNC Router Machine 3 Axis 3020T Engraving Machine with USB Function CNC Router 200mm x 300mm Router Engraver Milling Machine (3020T 3 Axis) [並行輸入品]
- メーカー
- BestEquip
- JAN
- 0712166592083
- メーカー品番
- NCNC
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明

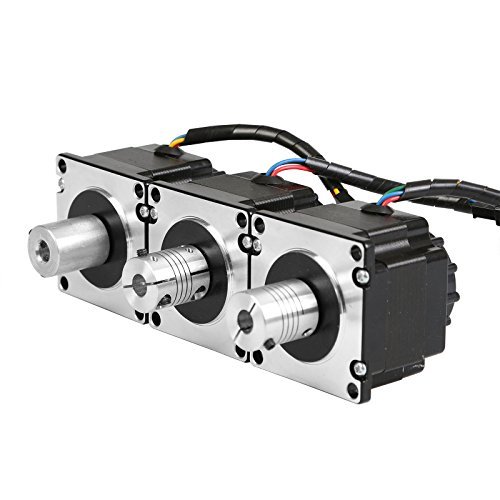

Flexible coupling can be used for high torque transmission.High precision stepping motor makes engraving more precise.

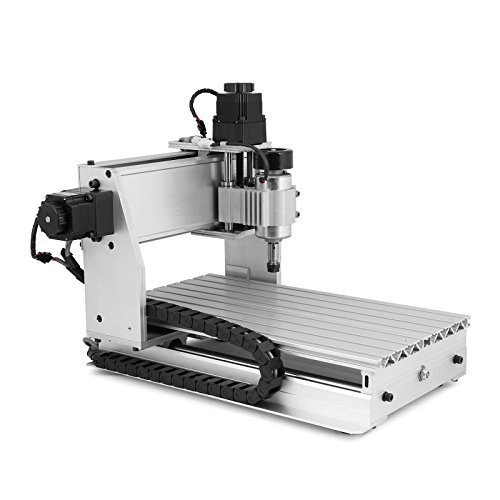

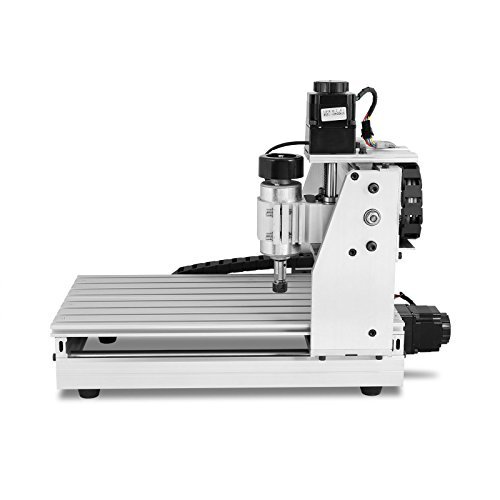

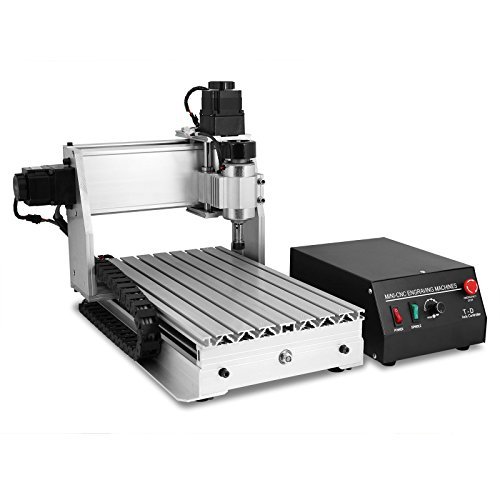

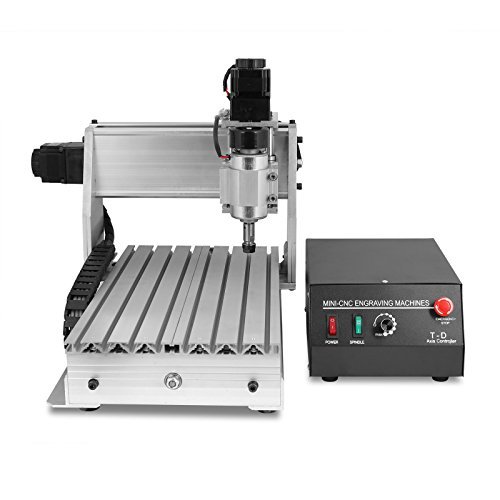

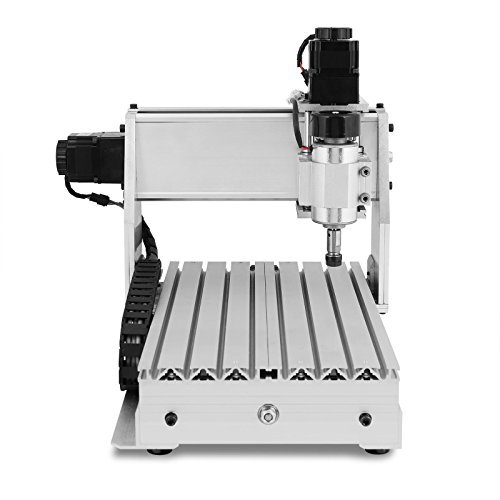

CNC USB 3020T Router Engraving Drilling and Milling Machine 3 Axis
The USB engraving machine is ideal for industrial, research, art and design, teaching, and hobbyist purposes. This machine is a compact desktop CNC machine that lets you do engraving work at the office or in your own home. It can be connected to your computer like a printer or scanner anytime, anywhere, so that you can realize your design using nonmetal materials or simple PCB/CNC.
Item Specifications
Frame materials: aluminum alloy 6063 and 6061
Driving units X axis: 1204 trapezoidal screws
Driving units Y axis: 1204 trapezoidal screws
Driving units Z axis: 1204 trapezoidal screws
Sliding units X axis: Dia.13mm chrome plate shafts
Sliding units Yaxis: Dia.16mm chrome plate shafts
Sliding units Z axis: Dia.12mm chrome plate shafts
Stepping motor type: 57 two-phase 1.45A-2A
Spindle motor: 200w dc motor
Repeat accuracy: 0.05mm
Empty line speed: 0-2500mm/min (16 subdivided driving down)
Spindle precision: radial beat acuities 0.03 mm
Control unit: triaxial one-piece drive + ring variable power + PWM speed
Carving Instructions: G code/TAB files/nc file/NCC files
Software environment: Windows 2000 / xp
Carving speed: 0-2000mm/min (different materials differ)

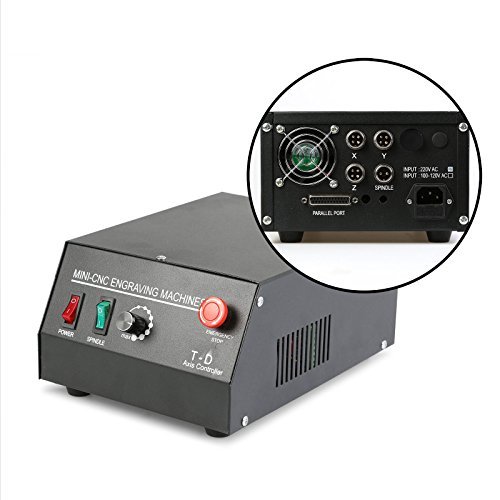

Control box specification:
Operating Voltage:AC110V /50Hz
Control unit:2.5A stepping motor driver plus adjustable spindle speed controller
Computer connection:on board parallel port
Command code:G code
Acceptable software:Mach3,EMC2
Protection:Emergency stop button
特記事項
- 新品、並行輸入品です。Brand new parallel imports from the US.
- CNC router machine work table dimension: 200mm*300mm*15mm.Effective working travel: 200mm(X)*300mm(Y)*50mm(Z)
- Carving depth: 55mm. Principal axis collet: ER11/3.175 mm.Spindle speed: 300 ~ 8000rpm/min (PWM stepless speed regulation)
- This CNC router is suitable for various materials, such as wood, PMMA or other plastic,MDF board,native wood,PVC,Acrylic, wood,composite board plywood
- Spindle motor knob is useful for small positioning adjustment ,with steady and strong support structure
