Hinges, Overlay, Face Frame, 1/2", (2) [並行輸入品]
- メーカー
- Blum
- JAN
- 9002617075397
- メーカー品番
- 33.3600; 130.1100.23
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明

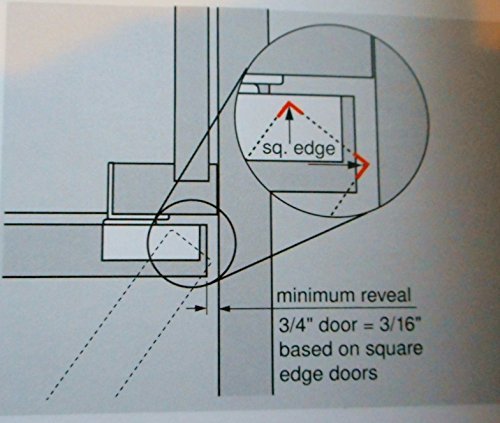

Mounting Hardware included; #6 x 5/8 in screws. THE DOOR OVERLAY IS MEASURED AT THE HINGE SIDE OF THE DOOR FROM OUTSIDE EDGE OF DOOR TO INSIDE EDGE OF OPENING. Blum Compact 33 hinge and 1/2 in face plate; 2 pcs each; for face fame applications. edge or face mount ; 110 deg door opening;. NOTE: THE DOOR OVERLAY IS MEASURED AT THE HINGE SIDE OF THE DOOR FROM OUTSIDE EDGE OF DOOR TO INSIDE EDGE OF OPENING.
特記事項
- 新品、並行輸入品です。Brand new parallel imports from the US.

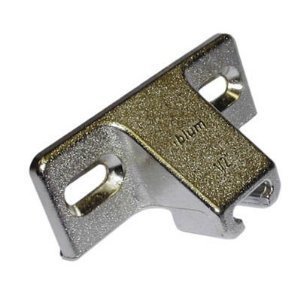

- Blum Compact 33 hinge with 1/2 in overlay mounting plate; 2 pieces each of the hinge and face plate.

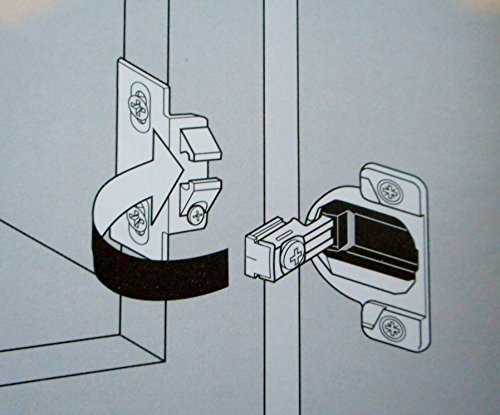

- Screw on version; edge or face mount ; 110 deg door opening; two piece assembly (hinge and plate)

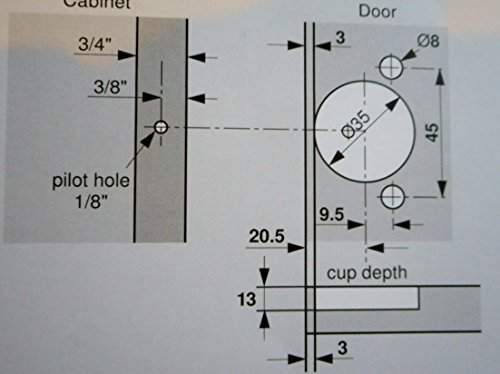

- 1/2 in cup depth; + or - 9/64 in height adj; - 1/8 in side adj only. Note: THIS HINGE SET IS FOR 1/2 IN DOOR OVERLAY - DOOR WIDTH SHOULD MEASURE 1 IN MORE THAN THE DOOR OPENING TO ACHIEVE 1/2 IN OVERLAY ON EITHER SIDE OF THE FRAME.
- Zinc die cast hinge and mounting plates; can be used with Blumotion 971A9700
