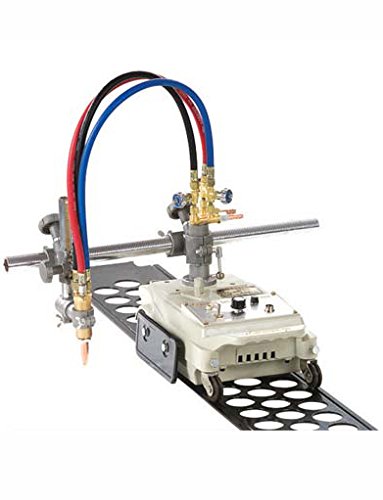

CG1-30B New Semi-automatic Torch Gas pipe Cutting Machine Cutter 110V/220V

商品説明

Usually the product should take about 6--13 business days to arrive your hand after your payment is confirmed

Specification
(1) External dimension s and weight
External dimensions: 430 x 230 x 280 mm (L x W x H)
Total Weight: 28.5 kg
Mainframe Weight: 14.7 kg
Cutting Nozzle Weight: 0.45 kg (3pcs)
Cutting Torch Weight: 2.7 kg (1 set)
Convex Guide Rail Weight: 6 kg (2pcs)
Guide Rail Dimension: 1800 x 220 x 30 mm
Input Voltage: AC 220 V /110 V, 50 Hz/ 60 Hz (optional, by default, we will ship according to the voltage of your Country)
Radius Rod Weight: 1.45 kg
(2) Range of Cutting:
Thickness of Steel Plate Cutting: 8 ? 100 mm
Regulation Range: 50 ? 750 mm/min ( Stepless speed regulation)
Diameter of Circumference for Cutting: ?200 ? 2000 mm
(3) Type of Guide Rail:
The frame provides one type of guide rail: convex.

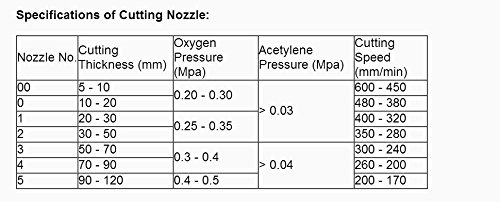

(4) The machine is supplied with GO2 1 ~ 3 cutting nozzles. Nozzles of other specifications will be available from purchase (see the table for cutting nozzle specifications when using the machine)

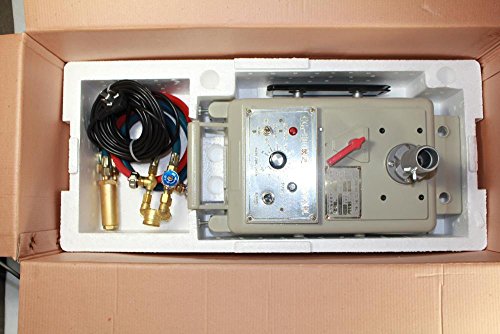

Accessories
GO2 1 ~ 3 cutting nozzles (1pcs/per)
Concave Guide Rail (1.2 m 2 pcs)
Cirle Cutting Tool (1 set)
