TZ10000MZGP Electroplated Metal 10 in 1 Mini lathe 60W 12000rpm 10in1 Lathe Kit/10 in1 Metal Lathe for students DIY Works best gift for Chrildren's Gift
- メーカー
- CGOLDENWALL
- JAN
- 5016887782224
- メーカー品番
- TZ10000MZGP
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
1.Motor speed :12,000rpm/min(optional choice 20,000rpm/min) 2.Input voltage/current/power:12VDC/5A/60W, Switching power input:110V-240V 3.Jigsaw working table size:90mm*90mm 4.Maximum working material diameter of metal lathe and woodturning lathe:50mm 5.Working material length of metal lathe and woodturning lathe:135mm 6.Center height of metal lathe:75mm 7. Slider travel: axis X 145, axis Y 32, axis Z 32 8.Collets:1-6mm 9.Drilling working table size:123*100mm 10.Maximum workpiece size clamped by vice:50mm11.Maximum workpiece diameter clamped by three-jaw chuck:50mm 12.Maximum bead?s diameter:20mm 13.Maximum workpiece diameter by big wood turning machine:130mm 14.Workpiece length by metal lathe and wood-turning machine :280mm 15.All of the machines are safe touch except milling machines. It requests to be used under parents or teachers instruction when the milling machine is being used by the kids. Working material thickness of jigsaw: hardwood 4mm, plywood 7mm, soft wood 18mm, aluminum 0.5mm, acrylic 2mm. It is a good tool for families and schools to do model airplane and other wood model crafts. 16.The outer package, called as storage box, is made of plastic , not foam. Inside of the storage box, there are 3 transparent food-grade plastic box containing machine parts and other 2 transparent food-grade plastic box containing screws. With the good package, it is much easier for the students to store the machine parts and it also increases the machines service life. Remark: to put the certain parts in a certain place, we designed 6 locating slots in the storage box and each locating slots is completely covered by the locating block . Therefore, the machine parts will be well packed and easily taken out.
特記事項

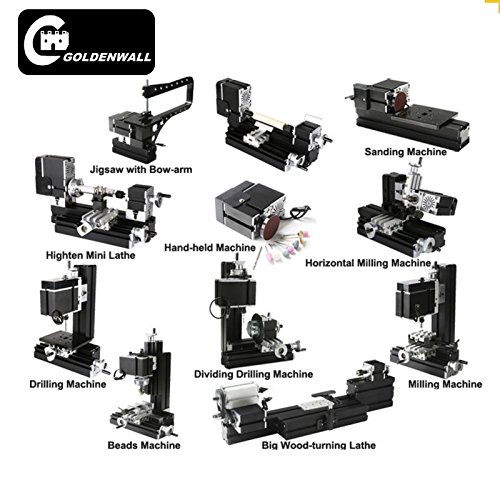

- 1.Motor?case?and?headstock?are?jointed.?Maximum?motor?power?is?144W?by?using?more?powerful?motor.?Some?parts?are?electroplated?to?make?the?machine?more?beautiful?and?practical.?The?parts?in?the?kit?can?be?assembled?into?10?kinds?of?machines?with?different?functions-bow-arm?jigsaw,?wood-turning?lathe,?metal?lathe,?beads?machines,?milling?machine,?drilling?machine,?sanding?machine,?hand-held?machine,?dividing?machine,?big?wood-turning?machine,?only?one?kind?of?machine?can?be?assembled?each?time.
- 2.Main?parts:headstock,?central?block,?jigsaw?base,?jigsaw?casing,?motor?blade,?gear,?woodturning?chisel?base,?cross?slider,?big?slider,?drilling?lever,?drilling?table,?jigsaw?table,?connection?piece,?tailstock,?sanding?paper?panel,?dividing?positioner,?vice(all?of?the?parts?above?are?made?of?metal),?drive?belt?cover,?grinding?wheel,?wheel?guard.
