Z8000M Mini DIY Machine 24W Metal 8 in 1 Mini Lathe 24W 20000r 8 in1 didactical lathe metal DIY lathe Kit for students DIY Works best gift for Chrildren's Gift

商品説明

Usually the product should take about 6--13 business days to arrive your hand after your payment is confirmed

Feature

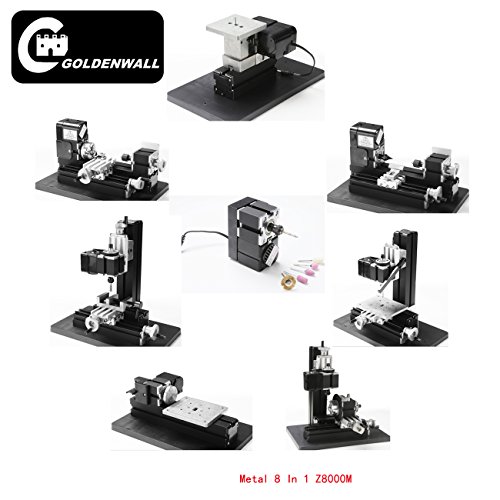

1. The parts in the kit can be assembled into 8 kinds of machines with different function- jigsaw, wood-turning machine, metal lathe, milling machine, drilling machine, sanding machine, hand-held machine, drilling machine with dividing plate,only one kind of machine can be assembled each time.?
2. Main parts: headstock, central block, jigsaw base, jigsaw casing, motor blade, gear, woodturning chisel base, cross slider, big slider, drilling lever, drilling table, jigsaw table, connection piece, tailstock, sanding paper panel, dividing positioner, vice(all of the parts above are made of metal), drive belt cover, grinding wheel, wheel guard.?

Specifications
1.Motor speed :2,0000rpm/min(optional choice 12,000rpm/min)
? 2.Input voltage/current/power:12VDC/2A/24W
? Switching power input: 110V-240V
? 3.Jigsaw working table size:90mm*90mm
4.Maximum working material diameter of metal lathe and woodturning lathe:50mm
5.Working material length of metal lathe and woodturning lathe:100mm
? 6.Working material length of metal lathe and woodturning lathe:135mm;
7. Slider travel: Axis X=145, Axis Y=32, Axis Z=32
8.Collets:1-6mm;
9. Drilling working table size: 123*100mm; 10. Maximum workpiece size clamped by vice:50mm; 11. Maximum workpiece diameter clamped by three-jaw chuck:50mm
12. Center height of metal lathe:25mm;
13. There are three circles of holes on the dividing plate and each circle with the same ratio holes. The number of the holes on each circle is respectively 36,40,48. We can choose them as needed.
14. All of the machines are safe touch except milling machines.
