Seesii SID Multi-Purpose Tester 0~320V TV LED Backlight Board Current Tester，Meter Detector Tool Beads All Size Output LCD Repair [並行輸入品]

商品説明

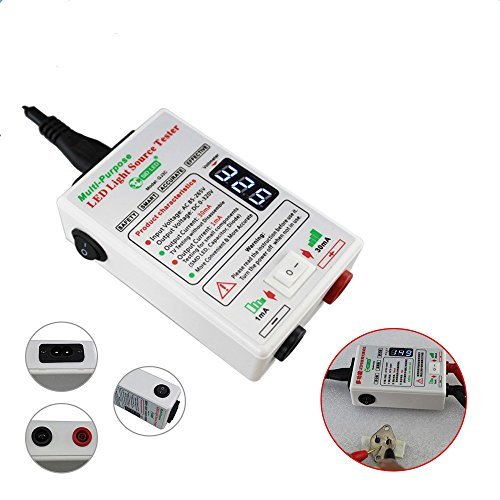

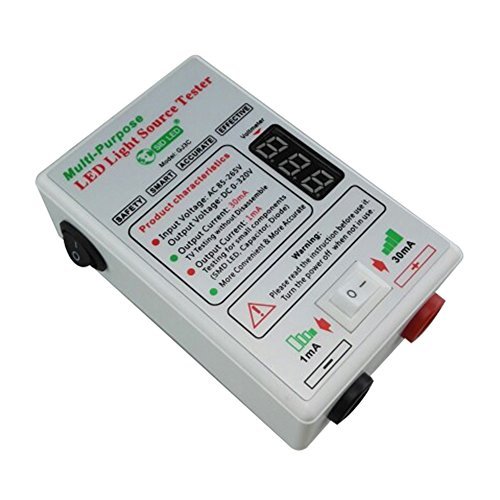

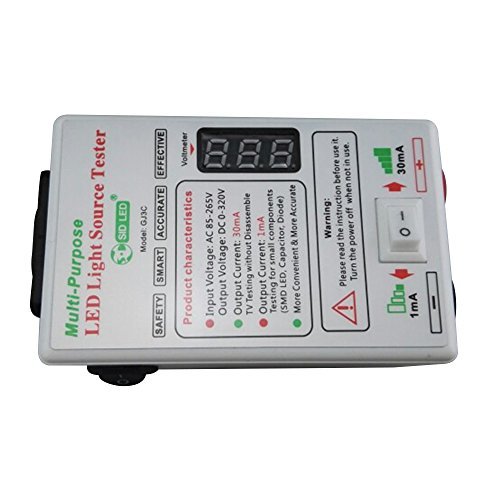

PRODUCT DESCRIPTION
Model No: SID-GJ3C
Input Voltage: 85-265V (International General)
Output Voltage: 0-320V
1.High Brightness No Disassemble More Accurate
2.Double Isolated Safe Protection
3.Voltage and Current Intelligent Adjustment
4.Voltage Range:0-320V
Output Current: 30mA
TV testing without disassemble
Output Current: 1mA

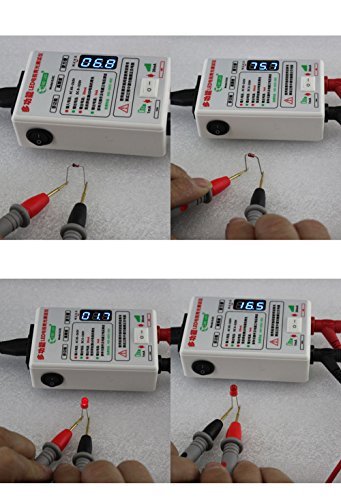

Testing for small components(SMD LED,Capacitor,Diode)
MAIN APPLICATION

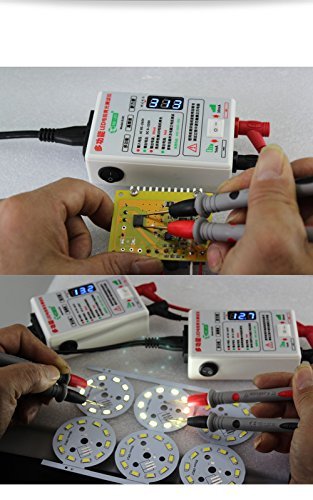

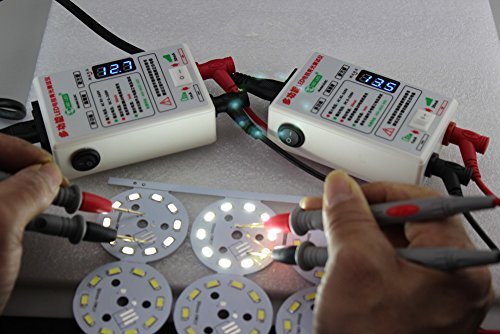

Testing the backlight of LED at any size Display the voltage, It can be tested in a long time, and will not damage the lamp beads .
If you are used to test the LED finished lamps, please disconnect the power supply before!
Because it is likely to form a loop, resulting in abnormal test!
ADDITIONAL APPLICATION

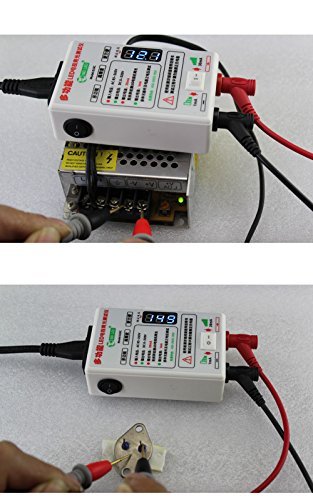

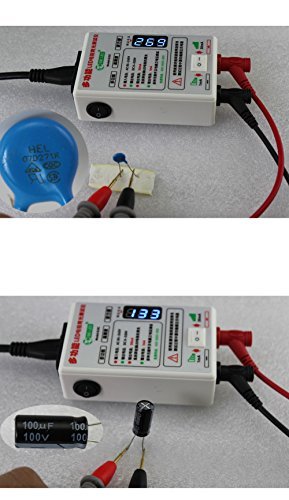

1 can test the capacitance voltage
2 can test the regulator voltage regulator
3 lamp plate voltage test value!
TESTING SKILLS:
1. Plug in power,it can be used after 5 to 10 seconds (first time, the machine needs to warm up!).
2. The soft start mode make the backlight getting brighter slowly.
3. No burn out, If you can't make sure the "+"and "-", Don't connect the probes to the LED which be tested for a long time.
4. Open Ciruit Protection : Don't touch the output terminal of probes for a long time .It's safe for touch the probes in short time periods.
5. Double Isolate Design makes our tester safety with high strength and flame retardancy materials.
SAFE/SMART/ACCURATE/High EFFICIENT
Double Isolated Safe protection No Burn out ,No Electric shock, Voltage and Current Intellgent Adjustment,
High Brightness No need disassemble.
Package Included
1x LED Light Source Tester
1x Power Cable
2x Table Pen
