Serial port for DSATX (Brainstem TTL to RS232 module) [並行輸入品]

商品説明

MP3CAR DESCRIPTION: This module is designed to provide a serial port
control for the DSATX. It connects directly on the DSATX power supply
and allows you to do things like tweak settings and monitor
performance as well as update the firmware.

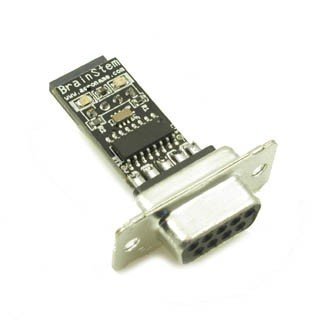

MANUFACTURE?S DESCRIPTION: The new BrainStem connector. This
connector plugs directly into a module and offers conversion from TTL
to RS-232 levels. Included are indicator LED's for host serial power
and stem logic power.

The interface connector has a female four pin connector on one end.
On the other end is a female DB9 connector, which can plug into your
Windows serial cable, or be used with the USB 1.1 to Serial Adapter
which can be used with your Mac or Windows USB hub. The CTS and RTS
lines are also connected and exposed although not used by the 4-pin
BrainStem connector. These can be separately wired for other uses in
your application.
