New Arrival 0.28" LED DC 0-100V 10A Voltmeter Ammeter Blue Red LED Amp Dual Digital Volt Meter Gauge Voltage Current Home Use Tools
- メーカー
- China
- ブランド
- D&B Product
- JAN
- 6091259560906
- メーカー品番
- ZC-15400
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
1Pcs Top Quality DC 100V 10A Voltmeter Ammeter Blue + Red LED Amp Dual Digital Volt Meter Gauge Voltage Current Home Use Tool.
Specifications:
Working voltage: 4.5-30V DC
Working current: ≤20mA
Display: 0.28 inch Two color blue and red
Measuring range: DC 0-100V 0-10A
Minimum resolution (V): 0.1V
Refresh rate: ≥100ms / times
Measure accuracy: 1% (± 1 digit)
Minimum resolution (A): 0.01A
Operating temperature: -15 to 70°c
Working pressure: 80 to 106 kpa
Size: 47 x 28 x 16mm / 1.85" x 1.10" x 0.63-inch
Weight: 29g
Package Included: 1 x Voltmeter Ammeter
Notes:
The maximum input voltage can not exceed 30V, otherwise there is the danger of burning
Please be reminded that due lighting effects, monitor's brightness/contrast settings etc, there could be some slight differences in the colour tone of the website's photo and the actual item.
Item Measure by hand, it could be 1-3cm different, your kind understanding will be much appreciated. Thank you.
特記事項
- 100% brand new and high quality.
- With small size(47 x 28 x 16mm), wide measuring range (DC 0-100V; 0-10A) and high accuracy 1% (± 1 digit).
- Display voltage and current simultaneously in different colors, red for voltage, blue for current.(the current is measured in the negative rail). Require external power supply;With reversed connection protection.

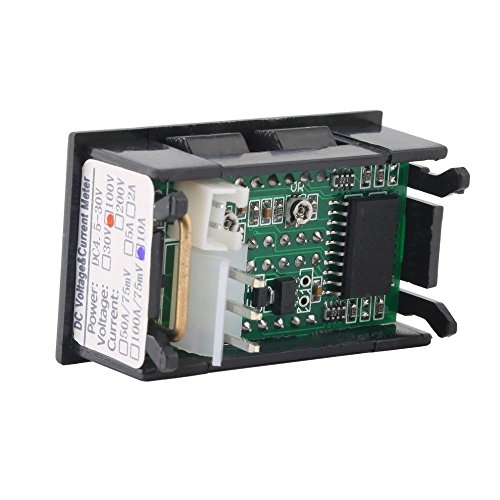

- With built-in shunt,has voltage and current calibration potentiometers. Ground wire of testing end and power supply temninal is the same wire, refresh rate of about ≥100ms/time
- Note: The maximum input voltage can not exceed 30V, otherwise there is the danger of burning.
