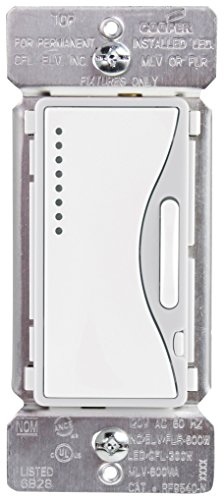

Eaton RF9540-NWS ASPIRE Single-Pole Multi-Location Master Dimmer Light Switch, White Satin [並行輸入品]

商品説明

Z-Wave Certification ID: ZC08-13010008. The Eaton RF9540-NWS ASPIRE Master Dimmer replaces standard switches to provide local and remote on/off and dimming controls with a separate dimmer bar. When used with ASPIRE RF and other Z-Wave compliant controls, this model features programmable functions including scenes, events, panic mode, association, child lockout and more. Other features include rapid and delayed fading with a 4-minute maximum and 10-second default, configurable power state and adjustable low and high level trim settings for optimal lamp compatibility and energy savings. This model is compatible with ASPIRE RF Accessory Dimmer (RF9542-Z) for wireless 3-way control, eliminating the need for traditional 3-way wiring or dedicated traveler wire. The RF9540-N has a single-pole design for multi-location wiring and is rated for incandescent, electric low voltage, magnetic low-voltage, LED, CFL and FLR lighting loads. Each dimmer can be manually and remotely controlled by commands sent from a maximum of (5) devices including, ASPIRE RF controllers (RFTDCSG, RFHDCSG, RFTCP) or other Z-Wave compatible controllers. This dimmer switch provides 120-volts of electricity at a 60-hertz alternating current (AC) and features LED indicators to show load status, light levels and an on/off. The programmable rapid start feature ensures lamp start-up even at low dim levels. This light switch is designed to reduce interference with radio, audio and video equipment for optimal performance with (6) pre-stripped wire leads for line, load, ground and neutral. The RF9540-NWS features an attractive and glossy white satin finish to match your home's. The Eaton RF9540-NWS ASPIRE Master Dimmer comes with a 2-year limited warranty. cULus Listed 6B28, NOM Certified, Z-Wave Compliant Certified. With a temperature rating of 32-104-degrees Fahrenheit, this product meets flammability rating V2 per UL94. Eaton is dedicated to providing up-to-date wiring device solutions.
