Flexiforce Pressure Sensor - 25lbs (1" Area)/This Is A Piezoresistive Force Sensor/Applications Detect And Measure A Relative Change In Force Or Applied Load [並行輸入品]

商品説明

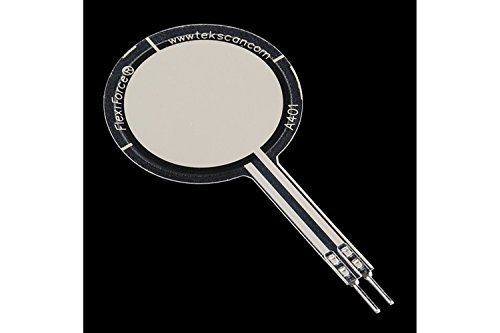

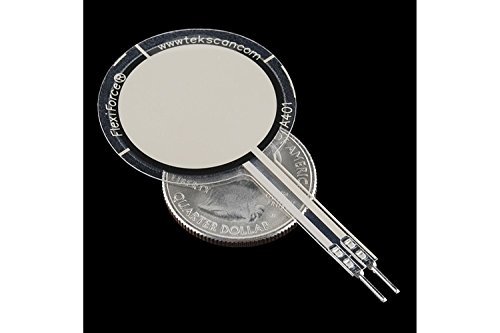

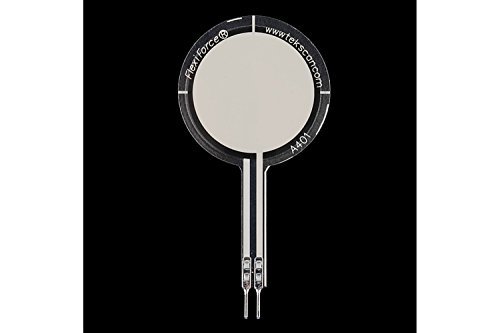

This is a piezoresistive force sensor. The harder you press, the lower the sensor's resistance. Pressing hard, the resistance changes from infinite to ~50k. The sensor itself is thin and flexible,

but the resistance does not change while being flexed. Resistance changes only when pressure is applied to the round area at the end of the sensor. This sensor is commonly used as a presence sensor (someone standing),

weight sensor, pressure sensor (impact testing), etc.

The overall length is about 2.25". The sensor comes with a 0.1" spaced, reinforced, breadboard friendly connector.This sensor ranges from 0 to 25lbs of pressure.

APPLICATIONS
Detect and measure a relative change in force or applied load
Detect and measure the rate of change in force
Identify force thresholds and trigger appropriate action
Detect contact and/or touch

SHIPPING LIST
Flexiforce Pressure Sensor - 25 lbs (1" area) x1
