DIY 2-in-1 CNCルーターキット+ 2500mWレーザー CNC2418 ミニフライス盤 USBデスクトップ彫刻機、木材、木工用 マーキングマシン - DIY 2-in-1 CNC Router Kit CNC2418 + 2500mW Laser Engraver - Mini PCB Milling Machine, USB Desktop Engraving Marking Machine, For Wood, Woodworking
- メーカー
- DiY CNC
- JAN
- 0663158447716
- メーカー品番
- CNC2418+2500mW
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明

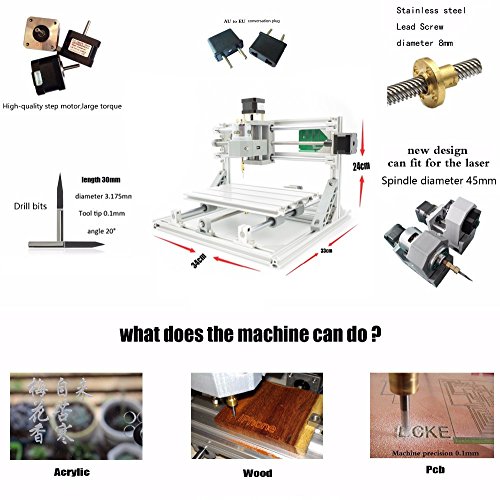

Machine Specifications: ; Rack: Aluminum + Plastic (gray); Dimensions: 330 x 340 x 240mm (excluding motors and other protruding parts); Working area: 240 x 180 x 40mm / 9.4" x 7" x 1.57"; Screw: T8 T-Screw Stainless Steel Lead Screw 8mm diameter; Stepper motor: 3pcs 1.3A, 0.25N.m; Spindle: 775 spindle motor (12-36V) 24V: 7000r/min, 36V: 9000r/min; Spindle diameter: 45mm; Tool Holder: ER11; Table: 15180 profile (footprint 260x180mm); Power supply: 24V 5.6A; Drill bits: included 10pcs; Clamps: 4 pcs, Hold the thickness of 0-30mm, Size: 50*20*12 (L*W*H), the inner slot width 8mm; Control software: Grbl (We send you a download link after the purchase for free); Support OS: Windows xp, Win7, Win8, Win10.; Processing materials:; Can engrave: Plastic, Wood, Acrylic, PVC, PCB or similar material.; Can not engrave or process Metals. ; Laser specifications:; Laser wavelength: 405nm (Blue-violet); Optical power: 2500mW; Housing material: Aluminum (anodized black); Operating voltage: DC 12V (7 ~ 15VDC); Power Interface: 2.1 DC socket; Cooling: Forced air;
特記事項
- 2-in-1 DIY Project for true makers - CNC Mill + Laser engraver!
- This is an un-assembled hobby CNC machine with a 2500mw laser head. Perfect for hobbyists and home workshops. Best CNC router kit for hobbyists. Great for fun, study and research. It is not intended for production use.

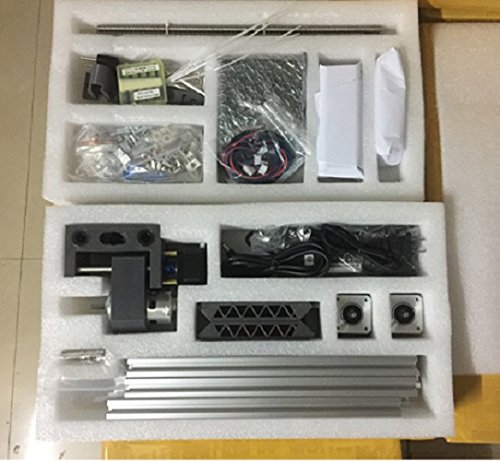

- This kit includes all the parts required to assemble a fully operational machine. Requires assembly from scratch. The CNC Machine kit Includes the electronics, motors, boards, frames and all the required parts to assemble your own desktop CNC router and Laser engraver.
- Can engrave: plastic, wood, acrylic, pvc, pcb, wood or the like material. Can not engrave or process Metals. Check out the CNC2417 model for Metal processing.
- Working area: 240x180x40mm. Controlled by Grbl software, easy to use.
