DIY CNCルータキット CNC1610 16x10x4.5cm ミニフライス盤 USBデスクトップ彫刻機、木材、木工用 - DIY CNC Router Kit CNC 1610 Mini PCB Milling Machine USB Desktop Engraving Machine, For Wood, Woodworking
- メーカー
- DiY CNC
- JAN
- 0663158447754
- メーカー品番
- CNC1610+5500mW
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明

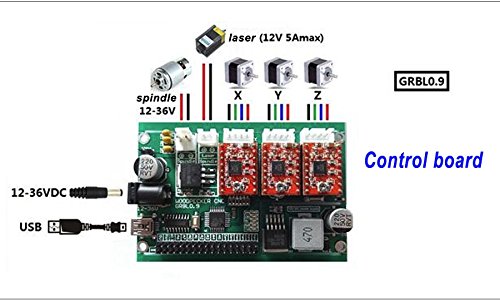

Machine specifications:; Frame size: 260 x 240 x 220mm; Net weight: 7.5kg; Working area: 160 x 100 x 30mm / 6.29" x 3.93" x 1.18"; Power supply: 24V, 5.6A; Screw: T8 T-Screw Stainless Steel Lead Screw 8mm diameter; Spindle motor: 775 spindle (12-36V) 24V:7000r/min, 36V:9000r/min; Spindle Chuck: ER11; Stepper motor: 1.3A, 0.25N.m; Frame: Aluminum, PVC, Plastic; Software: Grbl; Drill bits: 10pcs. Diameter: 3.175mm tip: 0.1mm length: 30mm; Laser specifications:; Wavelength: 450nm; Power: 5500mW; Electric current: 1A-3A; Voltage: DC 12V; Working temperature: +10 ~+40C; Driver module: TTL; Shell material: Aluminum Anodized Black; Engraving Materials:; The machine can carve wood, plastic, acrylic, PCB and similar materials; . Can not engrave or process Metals.;
特記事項
- 2-in-1 DIY Project for true makers - CNC Mill + Laser engraver! You can switch between the spindle and a 5500mW laser.
- This is an un-assembled hobby CNC machine with a 5500mw laser head. Perfect for hobbyists and home workshops. Best CNC router kit for hobbyists. Great for fun, study and research. It is not intended for production use.

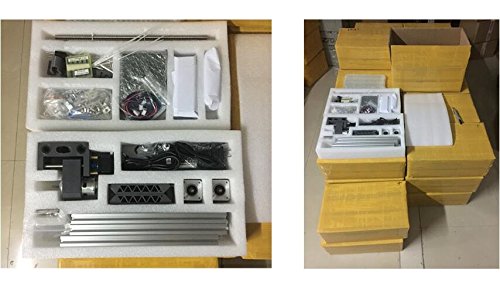

- This kit includes all the parts required to assemble a fully operational machine. Requires assembly from scratch. The CNC Machine kit Includes the electronics, motors, boards, frames and all the required parts to assemble your own desktop CNC router and Laser engraver.
- Can engrave: Plastic, wood, acrylic, pvc, pcb, wood or the like material. Can not engrave or process Metals. Check out the CNC2417 model for Metal processing.
- Working area: 160x105x30mm. Controlled by Grbl software, easy to use.
