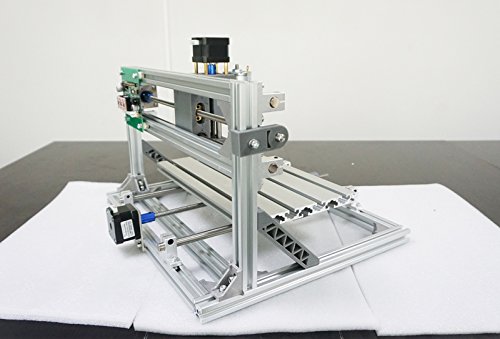

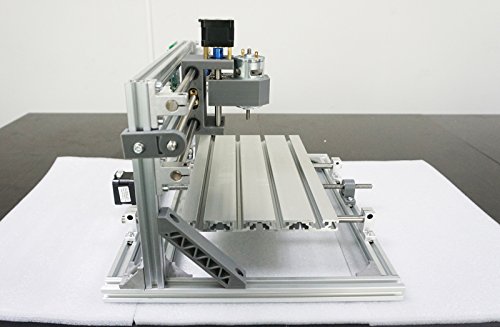

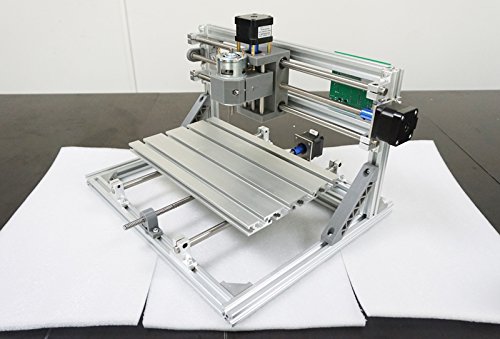

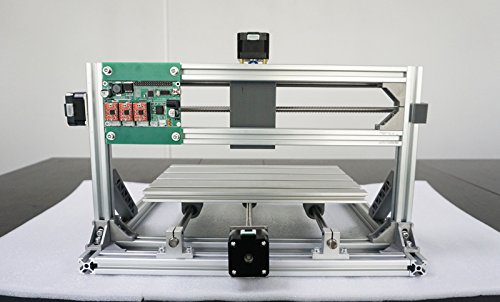

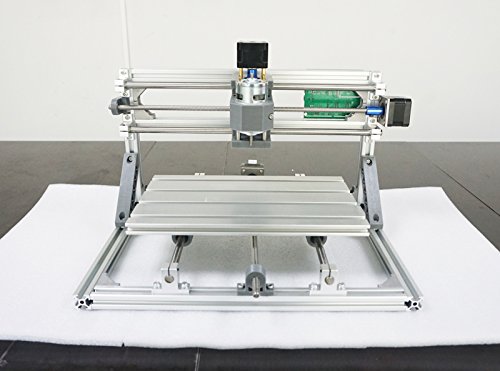

DIY CNCルータキット CNC3018 ER11 ミニフライス盤 USBデスクトップ彫刻機、木材、木工用 - DIY CNC Router Kit CNC 3018 Mini PCB Milling Machine USB Desktop Engraving Machine, For Wood, Woodworking
- メーカー
- DiY CNC
- JAN
- 0663158449864
- メーカー品番
- CNC3018
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明

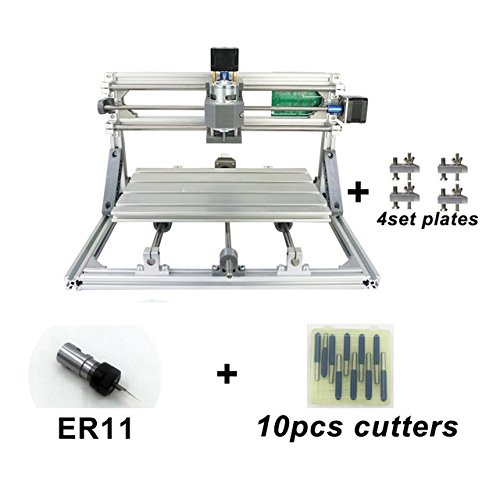

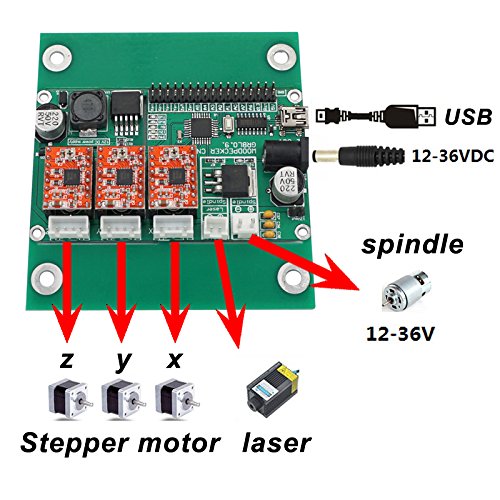

Technical Specifications: Working area: 30cm x 18cm x 4cm / 11.8" x 7" x 1.57"; Frame size: 33x40x24cm; Mesa: 30x18cm; Spindle: 775 spindle motor (12-36V) 24V: 7000r/min, 36V; Spindle Diameter: 45mm; Spindle Chuck: ER11; Step motor: 1.3A, 0.25N.m; Screw: T8 T-screw stainless steel Lead Screw diameter 8mm; Power supply: 24V 5.6A; Software: Grbl; Supported system: Windows XP, 7, 8, 10 (Do not support Mac); Drill bits: tip: 0.1mm ,20 degree , diameter: 3.175mm. Package includes 10pc; Laser: Support 500mw 405nm,12v / 2500mw 400nm,12v / 5500mw 450nm,12v (NOT INCLUDED); Processing materials: Can engrave: Plastic, Wood, Acrylic, PVC, PCB or similar materials.; Can not engrave or process Metals. Check out our 2417 model for Metal processing.;
特記事項
- This is a personal CNC engraving machine, perfect for artist, hobbyists and craft makers. Great for fun, study and research. Not intended for production use.
- Biggest working area for Hobby CNC machines, allows you to make bigger projects.

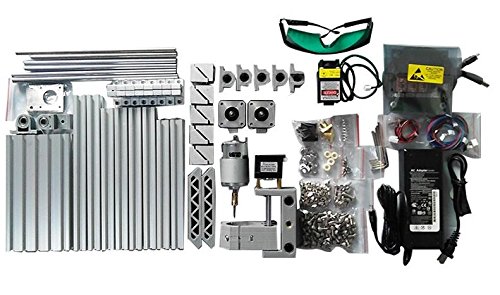

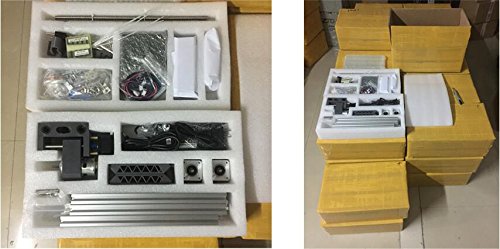

- Requires self-assembly from scratch. Includes all the components required for assembly. Assembly requires a certain mechanical skill. This is a true DO IT YOURSELF kit. If you are a true Maker, DIY Handyman or an artist, this machine offer a great way to repeat processes and do things that no hand tool ever allowed you to do.
- Can engrave: plastic, wood, acrylic, pvc, pcb, or the like material. Can not engrave or process Metals. Check out the CNC2417 model for Metal processing.
- Working area: 30cm x 18cm x 4cm / 11.8" x 7" x 1.57". Controlled by Grbl software, easy to use.
