DIY CNCルータキット CNC3018 ER11 ミニフライス盤 USBデスクトップ彫刻機,木材,木工用 - DIY CNC Router Kit CNC 3018 Mini PCB Milling Machine USB Desktop Engraving Machine, For Wood, Woodworking
- メーカー
- DiY CNC
- JAN
- 0663158451089
- メーカー品番
- CNC3018
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明

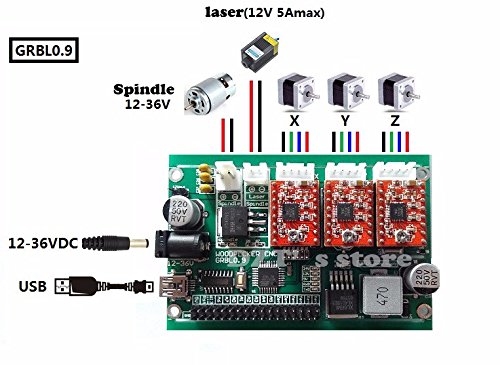

Technical Specifications:; Working area: 30cm x 18cm x 4.5cm / 11.8" x 7" x 1.7"; Frame size: 33x40x24cm; Mesa: 30x18cm; Spindle: 775 spindle motor (12-36V) 24V: 10000r/min; Spindle Chuck: ER11; Step motor: Fuselage length 34MM, Current 1.33A, 12v.Torque 0.25N/M; Power supply: 24V 5.6A; Software: GRBL controller; Supported system: Windows XP, 7, 8, 10 (Do not support Mac); Drill bits: tip 0.1mm ,20 degree , diameter3.175mm.the package include 10pc; Laser: Support 500mw 405nm,12v / 2500mw 450nm,12v / 5500mw 450nm,12v (NOT INCLUDED); Processing materials:; Can engrave: plastic, wood, acrylic, pvc, pcb or the like material. ; Can not engrave or process Metals. Check out our 2417 model for Metal processing.;
特記事項
- This is a personal CNC engraving machine, perfect for artist, hobbyists and craft makers. Great for fun, study and research. Not intended for production use.
- Biggest working area for Hobby CNC machines, allows you to make bigger projects.
- Requires self-assembly from scratch. Includes all the components required.
- Can engrave: plastic, wood, acrylic, pvc, pcb, or the like material. Can not engrave or process Metals. Check out the CNC2417 model for Metal processing.
- Working area: 30cm x 18cm x 4.5cm / 11.8" x 7" x 1.7". Controlled by Grbl software, easy to use.
