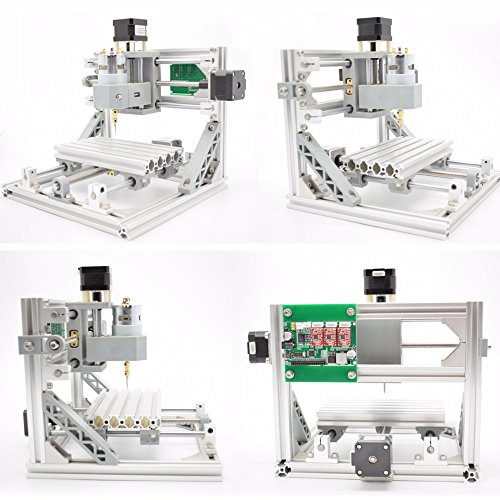

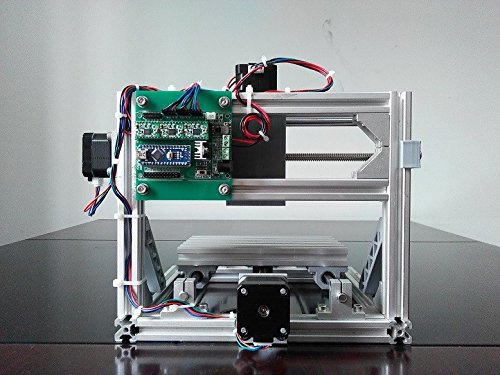

DIY CNCルータキット CNC1610 + ER11 16x10x4.5cm ミニフライス盤 USBデスクトップ彫刻機、木材、木工用 - DIY CNC Router Kit CNC 1610 + ER11 Mini PCB Milling Machine USB Desktop Engraving Machine, For Wood, Woodworking
- メーカー
- DiY CNC
- JAN
- 0663158451348
- メーカー品番
- CNC1610-ER11
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明

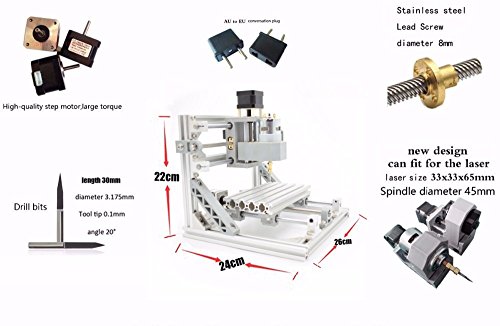

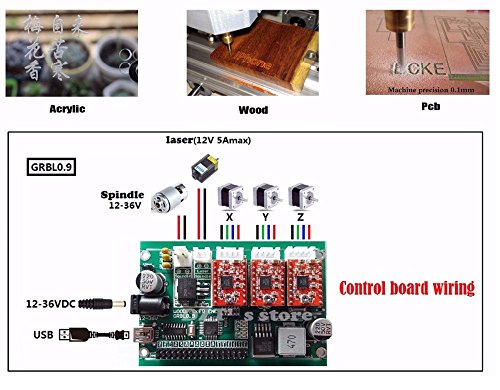

Technical Specifications:; Machine size: 260x240x220mm (excluding the projecting part of the motor); Working Area: 160 x 100 x 45 mm / 6.29" x 3.93" x 1.77"; Screw: Stainless Steel Lead Screw diameter 8mm; Stepper motors: 3pc Two-phase step motor 1.3A 0.25Nm; Spindle: 775 spindle motor (12-36V) 24V: 7000r; Power supply: 24V 5.6A adapter; Spindle chuck: ER11; Drill Bits: diameter 3.175mm, tip 0.1mm, length 30mm, 20 degree. (10pcs); Table: 20100 profile (100x180); Frame: 2020 profile; Software: Grbl ; Processing materials: Wood, plastic, acrylic, PCB CCL, etc; Can not engrave or process Metals.;
特記事項
- This is a personal mini CNC engraving machine, perfect for artist, hobbyists and craft makers.

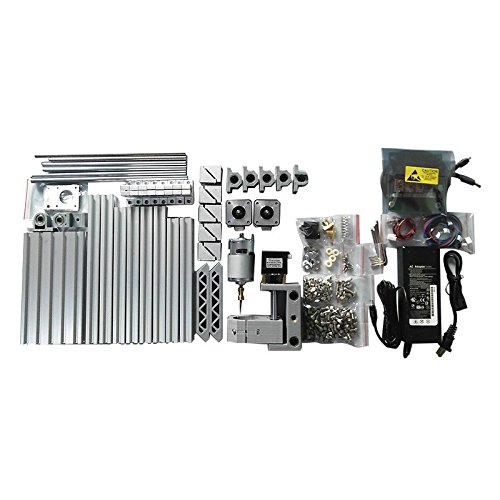

- Great for fun, study and research. Not intended for production use. Requires self-assembly from scratch. Includes all the components required for assembly.
- Assembly requires a certain mechanical skill. This is a true DO IT YOURSELF kit. If you are a true Maker, DIY Handyman or an artist, this machine offer a great way to repeat processes and do things that no hand tool ever allowed you to do.

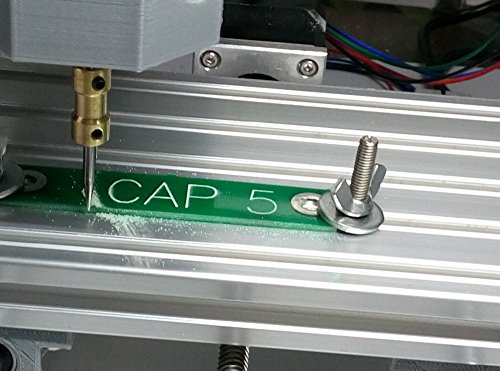

- Can engrave: Plastic, wood, acrylic, PVC, PCB or similar material. Can not engrave or process Metals. Check out the CNC2417 model for Metal processing.
- NEW: Can support ER11! Working area: 160 x 100 x 45 mm / 6.29" x 3.93" x 1.77". Controlled by Grbl software, easy to use.
