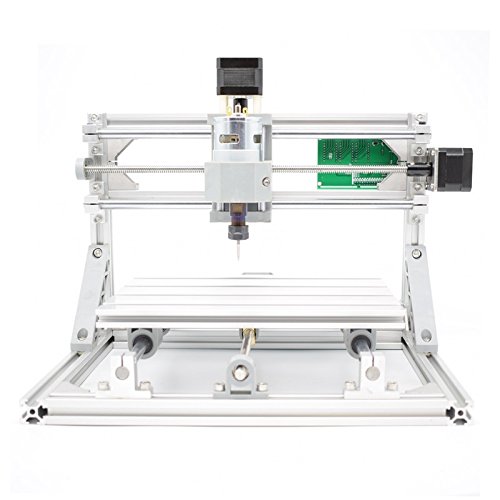

DIY 2-in-1 CNCルーターキット+ 5500mWレーザー CNC2418 ER11 24x18x4.5cm ミニフライス盤 USBデスクトップ彫刻機、木材、木工用 マーキングマシン - DIY 2-in-1 CNC Router Kit CNC2418 + 5500mW Laser Engraver - Mini PCB Milling Machine, USB Desktop Engraving Marking Machine, For Wood, Woodworking
- メーカー
- DiY CNC
- JAN
- 0663158451447
- メーカー品番
- CNC2418
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明

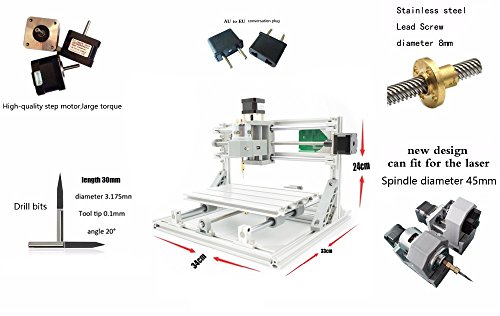

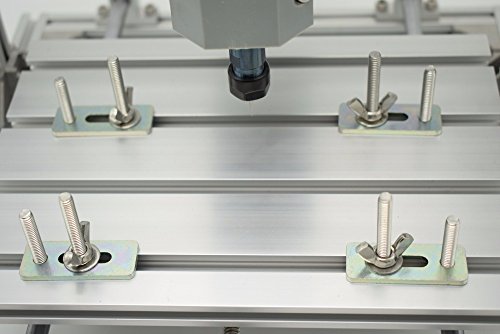

Technical Specifications: Rack: Aluminum + Plastic (gray); Dimensions: 330 x 340 x 240mm (excluding motors and other protruding parts); Working area: 240 x 180 x 45mm / 9.4" x 7" x 1.77"; Screw: Stainless steel lead screw, 8mm diameter; Stepper motor: 3pcs Fuselage length 34MM, Current 1.33A, 12v. Torque 0.2; Spindle: 775 spindle motor (12-36V) 24V: 10000r/min; Power supply: 24V 5.6A; Spindle chuck: ER11; Drill bits: tip 0.1mm, 20 degree, diameter: 3.175mm. (includes 10pcs); Clamps: 4 pcs, Hold the thickness of 0-30mm, Size: 50*20*12 (L*W*H), the inner slot width 8mm; Control software: Grbl ; Support OS: Windows XP, Win7, Win8, Win10.; Processing materials:; Can engrave: Plastic, Wood, Acrylic, PVC, PCB or similar material.; Can not engrave or process Metals.; Laser Can be used for carving, cutting. Can cut wood.; Laser specifications: ; Laser wavelength: 450NM; Power : 5.5W; Electric current:3-5A input; Voltage: DC 12V; Working temperature: +10 ~+40; Driver module: TTL;
特記事項
- 2-in-1 DIY Project for true makers - CNC Mill + Laser engraver!
- This is an un-assembled hobby CNC machine with a 5500mW laser head. Perfect for hobbyists and home workshops. Best CNC router kit for hobbyists. Great for fun, study and research. It is not intended for production use.

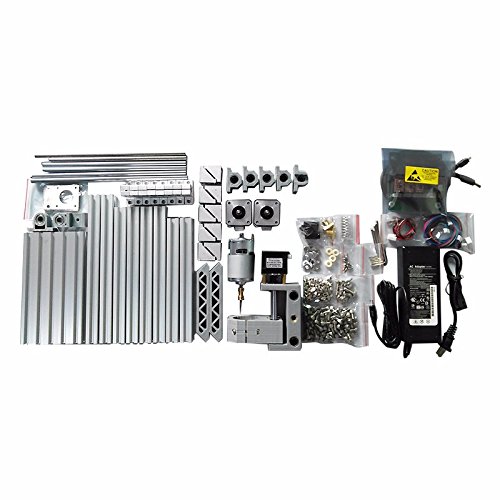

- This kit includes all the parts required to assemble a fully operational machine. Requires assembly from scratch. The CNC Machine kit Includes the electronics, motors, boards, frames and all the required parts to assemble your own desktop CNC router and Laser engraver.
- Can engrave: Plastic, wood, acrylic, pvc, PCN and similar material. Can not engrave or process Metals. Check out the CNC2417 model for Metal processing.
- Working area: 240x180x45mm. Controlled by Grbl software, easy to use.
