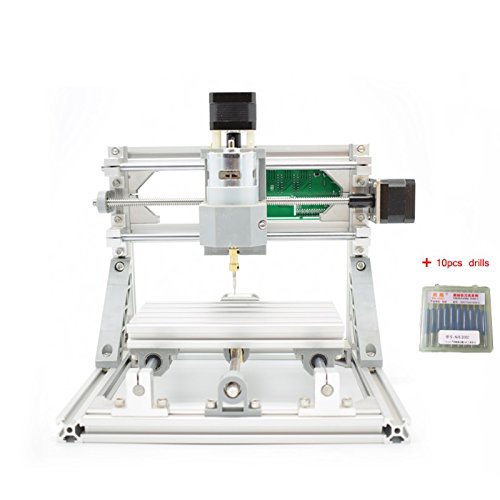

DIY 2-in-1 CNCルーターキット 16x10x4.5cm + 5500mWレーザー CNC1610 ミニフライス盤 USBデスクトップ彫刻機、木材、木工用 マーキングマシン - DIY 2-in-1 CNC Router Kit CNC 1610 with ER11 + 5500mW Laser Engraver - Mini PCB Milling Machine, USB Desktop Engraving Marking Machine, For Wood, Woodworking
- メーカー
- DiY CNC
- JAN
- 0663158452802
- メーカー品番
- CNC1610 ER11+5500mW
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明

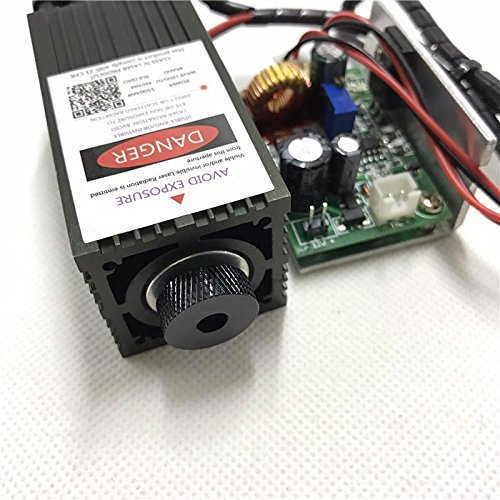

Technical Specifications:; Machine size: 260x240x220mm (excluding the projecting part of the motor); Working Area: 160 x 100 x 45 mm / 6.29" x 3.93" x 1.77"; Screw: Stainless Steel Lead Screw diameter 8mm; Stepper motors: 3pc Two-phase step motor 1.3A 0.25Nm; Spindle: 775 spindle motor (12-36V) 24V: 7000r; Spindle chuck: ER11; Power supply: 24V 5.6A adapter; Drill Bits: diameter 3.175mm, tip 0.1mm, length 30mm, 20 degrees. (10pcs); Table: 20100 profile (100x180); Frame: 2020 profile; Software: Grbl; Laser Specifications: Laser Wavelength: 450nm; Power: 5500mW (max 4.7W); Shell Material: Aluminum (Anodized Black); Operating Voltage: DC 12V (7 ~ 15VDC); Electric current: 3-5A input; Working temperature: +10 ~+40; Can be used for: Carving, cutting; Can cut: Wood; Cannot cut: Transparent and white Material; Cooling: Fan; Size: 33*33*75mm; Laser Focus: Adjustable; Driver module: TTL; Processing materials: Wood, plastic, acrylic, PCB CCL, etc; Can not engrave or process Metals.;
特記事項
- 2-in-1 DIY Project for true makers - CNC Mill + Laser engraver. This is an un-assembled hobby CNC machine with a 5500mW laser head.

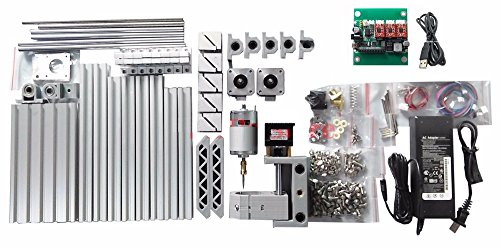

- The kit includes all the components required to assemble the machine. Including frames, boards, electronics, spindle, laser etc.
- Perfect for hobbyists and home workshops. Requires self-assembly and some knowledge of CNC.
- Processing materials: Wood, plastic, acrylic, PCB CCL, etc Can not engrave or process Metals.
- Working Area: 160 x 100 x 45 mm / 6.29" x 3.93" x 1.77"; Spindle Chuck: ER11.
