商品説明

Features:
1.Multifunctional, can measure AC/DC voltage, AC/DC current, resistance, frequency,diode,continuity,.
2.Stable performance, high precision, respond quickly.
3.LCD backlight screen,auto polarity display.
4.There is buzzing and low battery, overload protection.
5.Data hold, automatic display of polarity.

Description:
1.Shatter-resistant,passed 1m drop test.
2.Auto power off, low battery indication,low power consumption.
3.It's a perfect tool for the laboratory, factory and home.

Specification:
Brand:UNI-T
Model: UT207A
Color: Red & gray
Monitor: 3999counts
Working environment: 0-30℃ <75%/30-40℃ <50%/40-50℃ <45%
Storage environment: -20-60℃ <85%
Battery type:9 V Battery( not included )
DC voltage range: 400mV/4V/40V/400V/1000V
DC voltage accuracy: ±(0.8%+3)/±(0.8%+1)/±(1%+3)
AC voltage range: 400mV/4V/40V/400V/750V
AC voltage accuracy: ±(1.2%+20)/±(1.2%+3)/±(1.2%+5)
DC current range: 40A/400A/1000A
DC current accuracy: ±(2%+5)/±(2%+3)/±(1.5%+5)
AC current range:40A/400A/1000A
AC current accuracy: ±(2.5%+8)/±(2.5%+5)/±(1.5%+5)
Resistance range: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
Resistance accuracy: ±(1.2%+2)/±(1.0%+2)/±(1.5%+2)
Frequency range:2kHz-20kHz
Frequency resolution:400Hz-40MHz
Frequency accuracy: ±(0.1%+3)
Diode Measurement:Normal circuit voltage calue of silicon PN junction is about 0.5-0.8V
Continuity: Good conductivity is set as:<10Ω buzzer sounds.
Max.Jaw opening:55mm diameter
Max.current conductor size:45mm diameter
Drop test: 1m drop test passed.
Item size:286 x 110 x 40mm/ 11.26 x 4.33 x 1.57in
Item weight:556g/1.23lb

Package Information:
Package Size: 294x 225 x 70mm/ 11.57 x 8.86 x 2.76in
Package Weight: 1320g/2.91lb
General Box Package

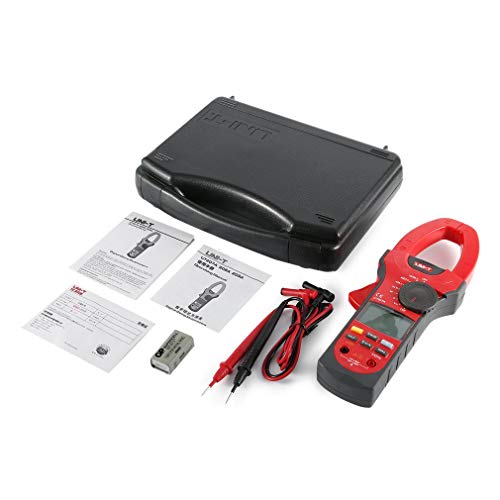

Package List:
1 x Multimeter
1 x Pair of test leads
1 x Carry box
1 x User manual
