電気回路UNI-T三相シーケンスおよびモータ回転インジケータメーターデジタルマルチメータ磁場反転LEDロータリーテスター（赤およびグレー）

商品説明

Features:

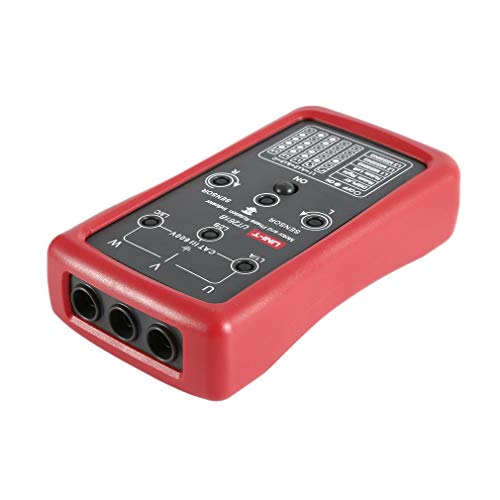

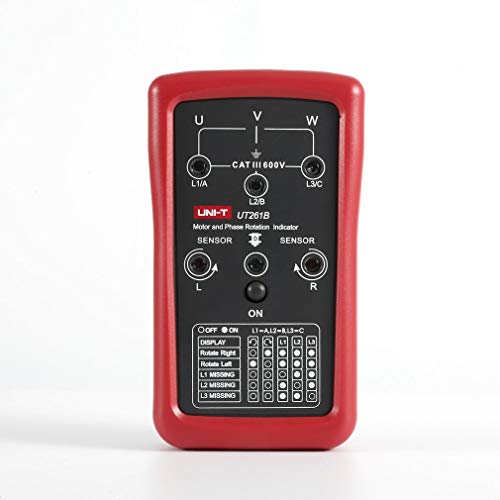

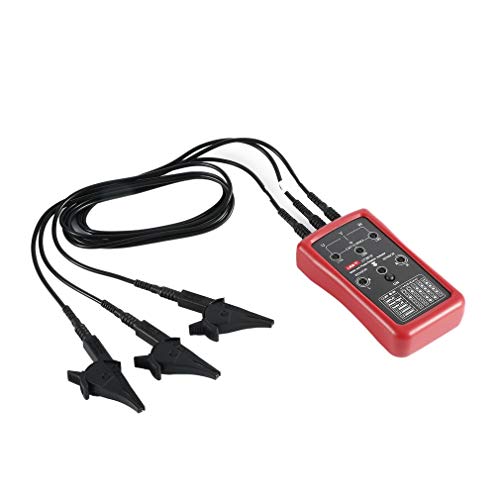

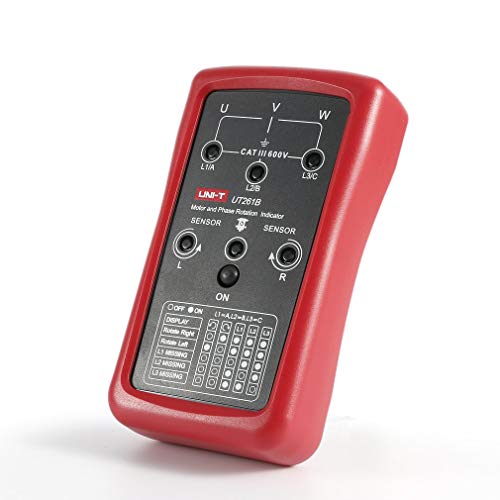

1.UT261B Phase Sequence and Motor Rotation Indicator is a handheld battery powered instrument.
2.Widely used to identify phase orientation of three-phase industrial equipments and motor rotation direction.
2.Stable performance, respond quickly.
3.Safe and reliable, no contact measurement.
4.Various LED light indication, easy to operate.
5.Portable and lightweight, can be put into pocket.

Description:
1.Comply with IEC61010/EN61010 and IEC61557-7.
2.Low power consumption,save energy.
3.It's a perfect tool for the laboratory, factory and home.

Specification:
Brand:UNI-T
Model: UT216B
Color: Red & gray
Working environment: 0-40℃ <95%RH
Storage environment: 0-50℃ <95% RH
Battery type:9V/6F22 Battery( not included )
Battery life: approximately 1 years of normal use
IP grade:IP 40
CAT rating:CAT III 600V
Phase indication:
Norminal voltage:90VAC-600VAC
Frequency range:15-400Hz
Numinal test current:<3mA
Non-contact rotating magenetic field indication:
Norminal voltage rotating direction value:30VAC-600VAC
Frequency range:15-400Hz
Numinal test current:<3mA
Item size:125 x 75 x 30mm/ 4.92 x 2.95 x 1.18in
Item weight:157g/5.55oz

Package Information:
Package Size: 261x 158 x 56mm/ 10.28 x 6.22 x 2.20in
Package Weight: 445g/1.03lb
General Box Package

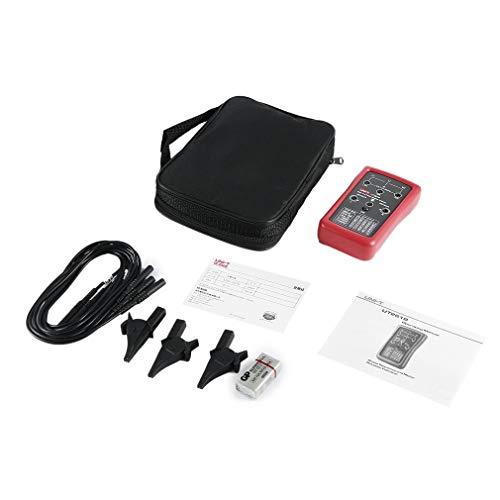

Package List:
1 x Phase Sequence and Motor Rotation Indicator
3 x Test leads
3 x Aligator clips
1 x Carry bag
1 x User manual
