マルチメーターUNI-T UT105オートモーティブハンドヘルドマルチメータAC / DCVオームダイオード電流電圧メータテスタメータデジタル電流計マルチテスター（赤とグレー）

商品説明

Features:
1.Can be used as multimeter, measure AC/DC voltage, DC current, resistance,diode, continuity, dwell, engine tach.
2.Diagnosis of automative troubles, including fuse, switch,solenoid or relay,starting or charging system,battery power consumption,trigger voltage battery load,voltage drop,charging system voltage,engine sensor.
3.Stable performance, high precision, large testing range.
4.Use anti-slip sticky plastics material, it has a good sense of grasp.

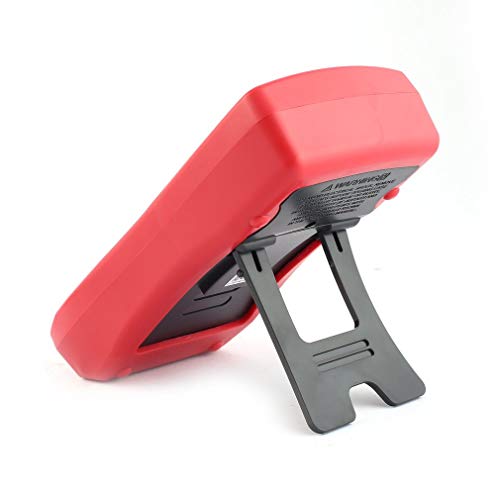

5.Unique design:support bracket , easy to use.

Description:
1.Data hold, convenient to read.
2.Large LCD display, low battery indication.
3.Ideal tool for the laboratory, factory and home.

Specification:
Brand:UNI-T
Model:UT105
Color:Red & Gray
Maximum Display:1999
DC voltage range: 200mV/2V/20V/200V/1000V
DC voltage resolution: 0.1mV/1mV/10mV/100mV/1V
DC voltage accuracy: ±(0.5%+5)/±(0.8%+5)
DC voltage range: 2V/20V/200V/750V
DC voltage resolution: 1mV/10mV/100mV/1V
DC voltage accuracy: ±(0.8%+5)/±(1.0%+4)
DC current: 200mA/10A
DC current resolution: 0.1mA/10mA
DC current accuracy: ±(0.8%+5)/±(1.2%+5)
Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
Resistance resolution: 0.1Ω/1Ω/10Ω/100Ω/1kΩ/10kΩ
Resistance accuracy: ±(0.8%+5)/±(1.5%+5)
Diode Resolution:1mV
Diode Overload Protection:600Vp
Dwell Range: 4CYL/6CYL/8CYL
Dwell Resolution:0.1
Dwell accuracy: ±(3%+5)
Dwell Overload Protection:600Vp
Tach Range: 4CYL/6CYL/8CYL
Tach Resolution:10RPM
Tach accuracy: ±(3%+5)
Tach Overload Protection:600Vp
Power supply: 2x 9V 6F22( not included )
Item weight:311g/10.98oz
Item size:180x 87x 37mm/7.09 x 3.43 x 1.46in

Package Information:
Package Size: 260x 160 x 59mm/ 10.24 x 6.30 x 2.32in
Package Weight: 561g/1.24lb
General Box Package

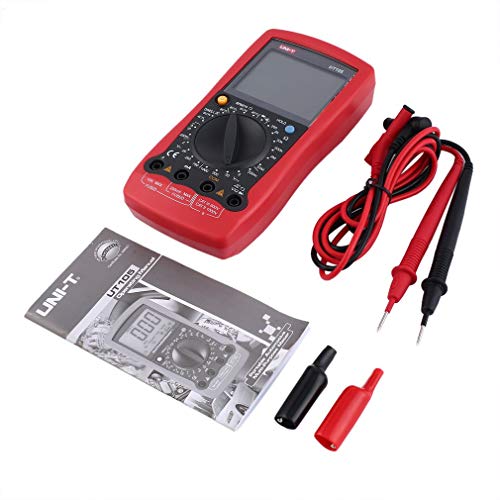

Package List:
1 x Automotive meter
1 x User manual
1 X Pair test lead
1 X Pair aligator clip
