電気回路ホールドピーク抵抗テスターデジタルアース抵抗計メグホームメーター（青）

商品説明

Features:
1.Wide Measuring Range: Earth Resistance: 0~2000Ω; Voltage: DC0~200V.
2.Large LCD display(68 * 55mm) with backlight offers clear reading, max. display "1999".
3.Includes data hold, low battery indication and overload protection functions.
With "HV" indicator light, indicates begin to measure voltage.
4.USB drive system software upgrade.

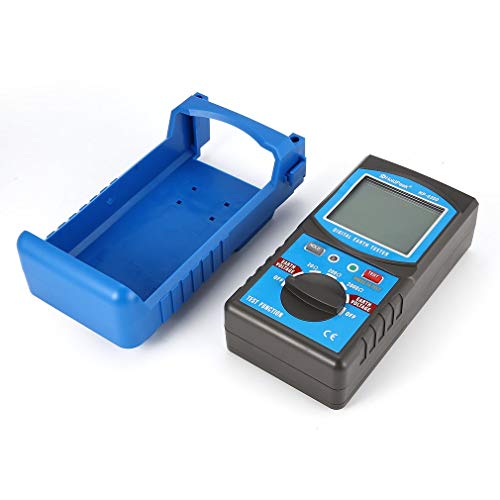

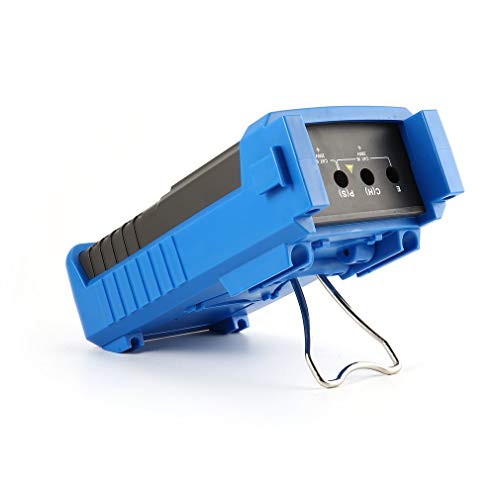

5.Equipped with a back bracket for supporting and protected by rubber for drop protection.

Description:

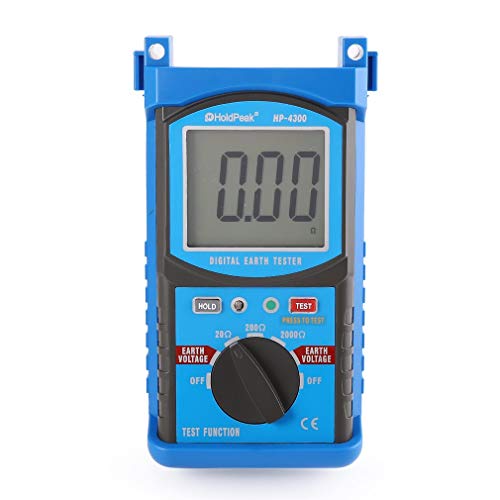

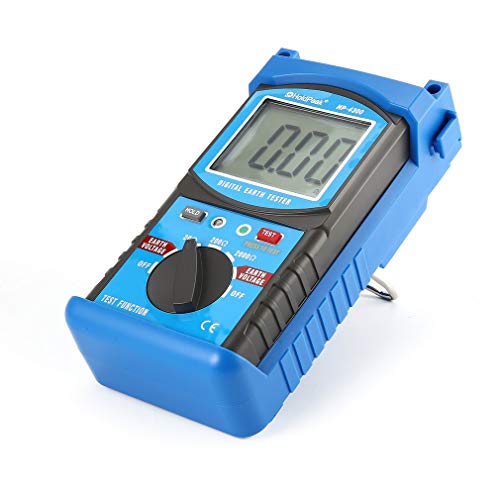

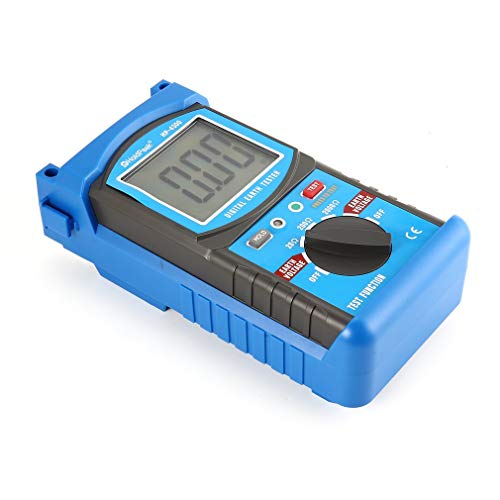

1.This Digital Earth Ground Resistance Tester is a new tester for measuring the earth resistance, low resistance conductor, soil resistivity and ground voltage.
2.It can test voltage in DC0~200V, resistance in 2000Ω and alternating voltage as well.
3Widely used in telecommunications, railways, mining, etc.

Specification:
Brand:Holdpeak
Model:HP-4300
Color:Blue
Material: ABS
Display: 1999
Range Control: Manual
Working environment: 0-40℃ <80%RH
Storage environment: -10-50℃ <85%RH
Power supply:1.5V x 6 R6P AA SUM-3 batteries
Response time: about 5 seconds(earth resistance), about 2 seconds(earth voltage).
Earth Resistance Range:20Ω/200Ω/2kΩ
Accuracy: ±(2%+0.1)/±(2%+3)
Earth Voltage Range:200V
Accuracy: ±(1%+4)
AC Voltage Test: 1500V
Item size:219mm ×121mm × 75mm
Item weight:739g

Package Information:
Package Size: 424x 362 x 110mm/ 16.69 x 14.25 x 4.33in
Package Weight: 2953g/6.51lb
General Box Package

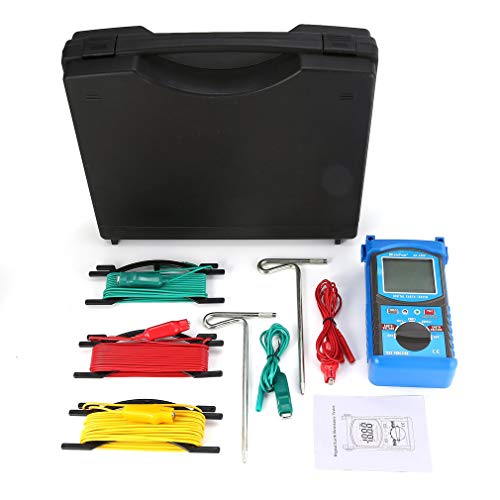

Package List:
1 x Earth Ground Resistance Tester
5 x Alligator Clips
2 x Earthed Poles
1 x Carry Case
1 x User Manual
