BTMETERデジタルマルチメーターBT-90EオートレンジデジタルマルチメーターDMM CapHZ温度計バッテリーテスターLCDバックライト

商品説明

Features:
AC/DC voltage, current, resistance, frequency, capacitance, temperature, battery test
Test duty cycle
Continuity buzzer and diode test
Auto/manual range
Relative Value
Display: 3 1/2 digits LCD display, with a max. reading of 4000 counts

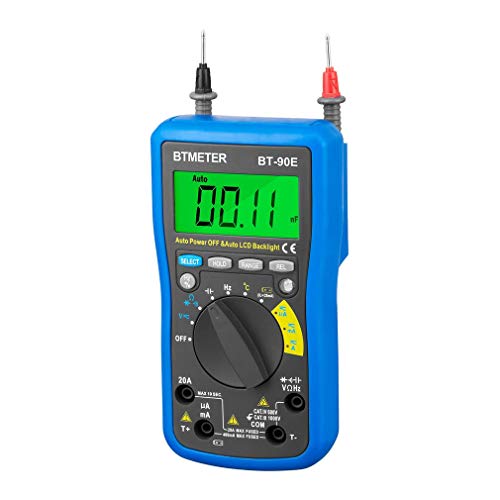

Auto LCD backlight display

Description:
Overload protection: full range protection
Data hold function
Low battery display
Over range display (“O L”)
Automatic power off

Specifications:
Brand Name: BTMETER
Model: BT-90E
Color: black&blue
DCV: 400m/4/40/400V ±0.5%; 1000V ±0.8%
ACV: 400mV ±1.2%; 4/40/400/750V ±0.8%
DCA: 400u/4000u/40m/400mA ±1.2%; 4/20A ±2.0%
ACA: 400u/4000u/40m/400mA ±1.5%; 4/20A ±2.5%
Ohm: 400Ω/4K/40K/400K/4MΩ ±1.0%; 40MΩ ±1.5%
Freq.: 5.12Hz~5.12MHz ±0.1%
Cap.: 51.2nF~100uF ±2.5%
Temp.: -20℃~1000℃ ±3%
Battery Power Test: ±1.5%
Power Supply: 1 * 9V/6F22 (not included)

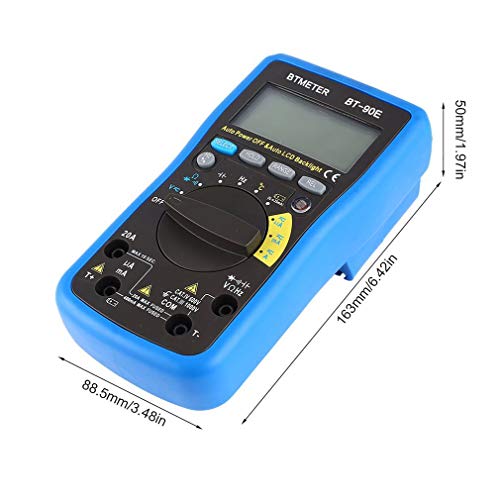

Dimensios: 163 * 88.5 * 50mm
Package Size: 23 * 15 * 7cm / 9 * 5.8 * 2.7in

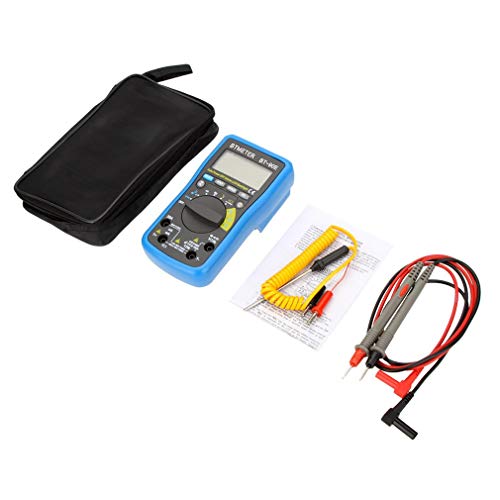

Package List:
1 * BTMETER BT-90E Digital Multimeter

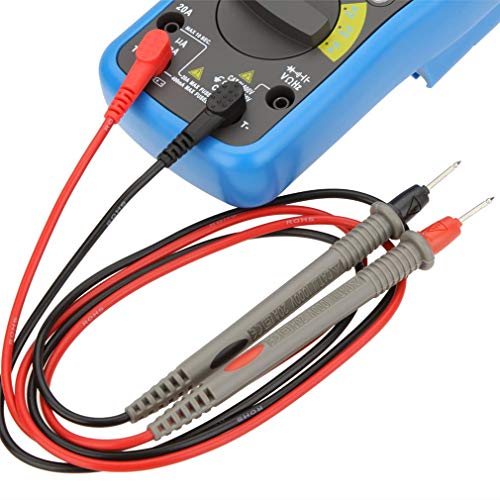

1 * Pair Alligator Clip (Black & Red)
1 * Temperature Probe
1 * English Manual
1 * Carrying Bag
