デジタルマルチメータHY-19B DC / AC電圧電流計ハンドヘルド電流計オームダイオード容量性テスター5999マルチテスター

商品説明

Features:
1.Multifunctional, can measure AC/DC voltage,DC/AC current, risistance,diode,capacitance,frequency,duty ratio,continuity.
2.Stable performance, high precision, respond quickly.

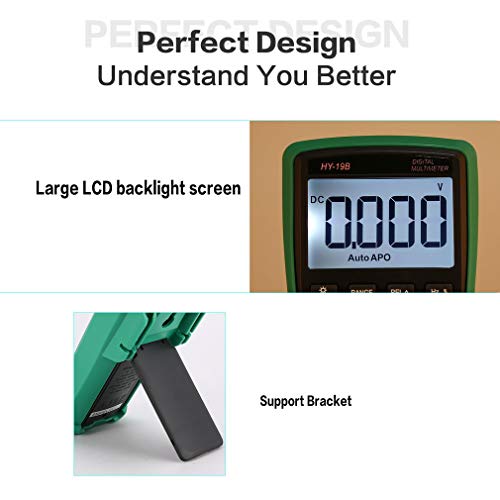

3.Large LCD backlight screen,easy to read.
4.Low battery indication, overload protection.
5.Data hold,buzzer indication.

Description:
1.Portable and lightweight, easy to carry.
2.Auto power off, low battery indication,low power consumption.
3.It's a perfect tool for the laboratory, factory and home.

Specification:

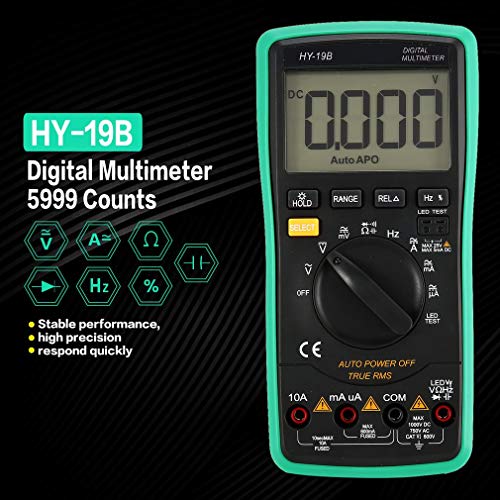

Model:HY-19B
Color:Green & Gray
Display: LCD
Max.Dispaly:5999
Battery type: 1 x 9V Battery(not included)
DC voltage range: 600mV/6V/60V/600V/1000V
DC voltage accuracy: ±(0.5%+3)/±(0.8%+10)
AC voltage range(TRMS):600mV/6V/60V/600V/750V
AC voltage accuracy: ±(0.8%+5)/±(1.2%+10)
DC current range:600μA/6000μA/60mA/600mA/10A
DC current accuracy: ±(0.8%+10) / ±(2%+30)
AC current range: 600μA/6000μA/60mA/600mA/10A
AC current accuracy:±(0.8%+10) / ±(2%+30)
Resistance range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Resistance accuracy: ±(0.8%+5)--±(1.0%+25)
Capacitance range: 60nF/600nF/6μF/60μF/600μF/6mF
Capacitance accuracy: ±(3.5%+20)/±(5%+10)
Frequency range: 10Hz-1MHz/20MHz
Frequency accuracy: ±(0.1%+3)
Continuity: <50±20 Ω buzzer sounds.

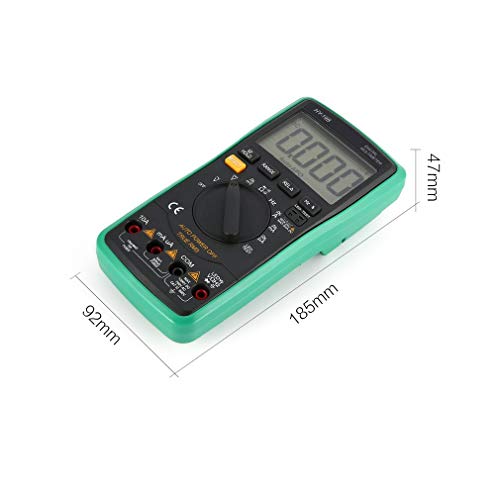

Item size:185 x 92 x 47mm
Item weight:323g

Package Information:
Package Size: 203x 137 x 63mm/ 6.50 x 4.29 x 1.85in
Package Weight: 492g/1.09lb
General Box Package

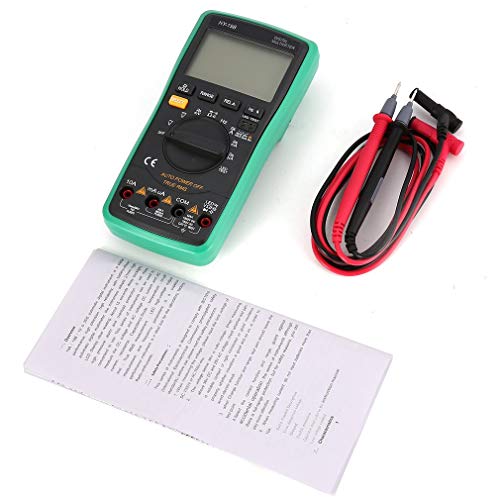

Package Included:
1 x Digital Clamp Meters
1 x Pair of test leads
1 x User manual
