SZBJ BM818デジタルDC / ACクランプメーターマルチメーターボルトアンプオームダイオードNCV静電容量テスターハンドヘルド非接触電流計

商品説明

Features:
1.Multifunctional, can measure AC/DC voltage, AC current, resistance, capacitance, NCV,diode, continuity.
2.Portable design: Small and can be put into pocket,easy to carry.
3.Stable performance, high precision, large LCD backlight screen, large capacitance range.
4.Safe and reliable, non-contact NCV tester.
5.There is buzzing indicator.
Description:
1.Clamp meter multimeter, easy to use, for more delicate work.
2.Auto power off, low power consumption.
3.Ideal tool for the laboratory, factory and home.

Specification:
Model: BM818
Color: orange & red
Working environment: 0-40℃, 75%RH
Storage environment: 0-40℃, 75%RH
Display mode: display by LCD
Maximum display: 1999
Maximum span of jaw: 27mm
Auto negative polarity indication: displaying "-"
Backlight display: yes
Automatic power OFF: yes
Low voltage display: yes
Battery: 2 x AAA1.5V (not included)
Diode test: yes
DC voltage range: 200mV/2V/20V/200V/600V
DC voltage resolution: 0.1mV/1mV/10mV/100mV/1V
DC voltage accuracy: ±(0.5%+5)
AC voltage range: 2V/20V/200V/600V
AC voltage resolution: 1mV/10mV/100mV/1V
AC voltage accuracy: ±(1.2%+5)
AC current: 2A/20A/200A/600A
AC current resolution: 1mA/10mA/100mA/1A
AC current accuracy: ±(2%+10)
Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
Resistance resolution: 0.1Ω/1Ω/10Ω/100Ω/1kΩ/10kΩ
Resistance accuracy: ±(1%+5)
Capacitance range: 20nF/200nF/2μF/20μF/200μF/2000μF
Capacitance resolution: 0.01nF/0.1nF/1nF/10nF/100nF/1μF
Capacitance accuracy: ±(3%+5)

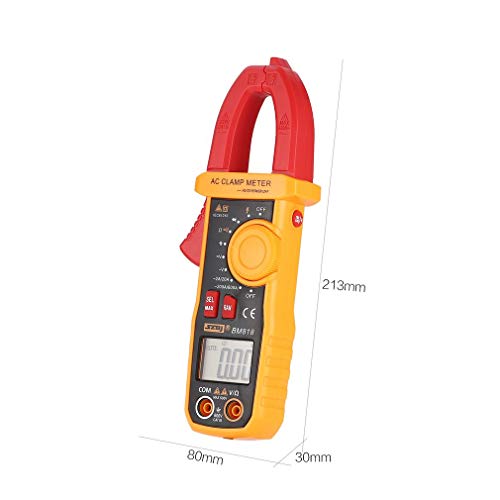

Item size: 213 x 80 x 30mm/8.39 x 3.15 x 1.8in
Item weight: 216g / 7.63oz

Package information:
Package size: 230 x 113 x 41mm / 9.06 x 4.45 x 1.61in
Package weight: 399g / 14.07oz
General Box Package

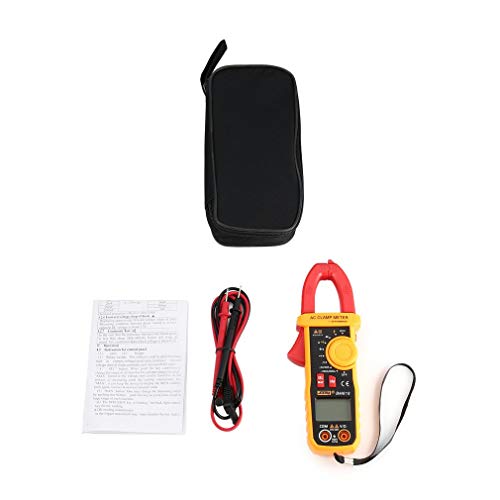

Package list:
1 x AC Clamp Meter
1 x Pair of test leads
1 x Cloth Bag
1 x User Manual
