デジタルクランプメータユニットDC/AC電圧アンプオームダイオードミニマルチメータ電流計マルチテスター電流耐圧テスタープローブ

商品説明

Features:
1.Multifunctional, can measure AC/DC voltage, AC current, resistance, diode,continuity,.
2..Stable performance, high precision, respond quickly.
3.LCD backlight screen,veasy to read at night.
4.There is buzzing and low battery, overload protection.
5.Data hold, automatic display of polarity.

Description:
1.Portable and lightweight, easy to carry.
2.Auto power off, low battery indication,low power consumption.
3.It's a perfect tool for the laboratory, factory and home.

Specification:
Brand:UNI-T
Model: UT200A
Color: Red & gray
Monitor: 1999counts
Working environment: 0-40℃
Storage environment: -10-50℃
Humidity:0-30℃: <75%
30-40℃ <50%

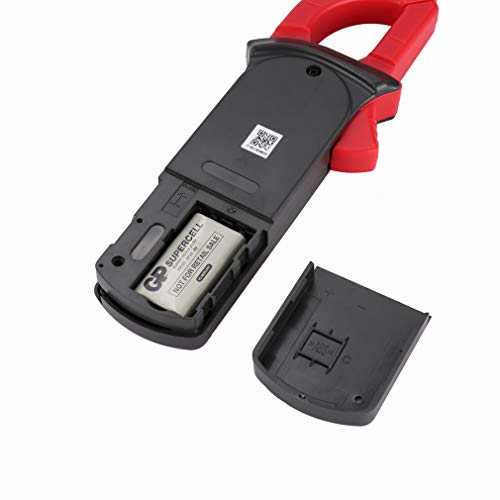

Battery type: 9V 6F22( not included )
DC voltage range:600V
DC voltage accuracy: ±(1%+3)
AC voltage range: 600V
AV voltage accuracy: ±(1.5%+5)
AC current range: 2A/20A/200A
AC current accuracy: ±(2.5%+12)/±(2%+5)/±(1.5%+5)
Resistance range: 20kΩ
Resistance accuracy: ±(1.0%+4)
Continuity: Good conductivity is set as:<10Ω buzzer sounds.
Diode Measurement:Normal circuit voltage calue of silicon PN junction is about 0.2-0.3V
Maximum size for opening the clamp heads:diameter 28mm
Item size:214 x 78 x 30mm/ 8.43 x 3.07 x 1.18in
Item weight:191g/6.74oz

Package Information:

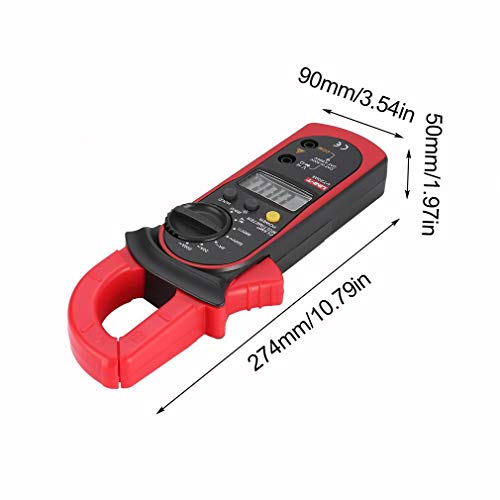

Package Size: 274x 90 x 56mm/ 10.79 x 3.54 x 2.20in
Package Weight: 354g/12.5oz
General Box Package

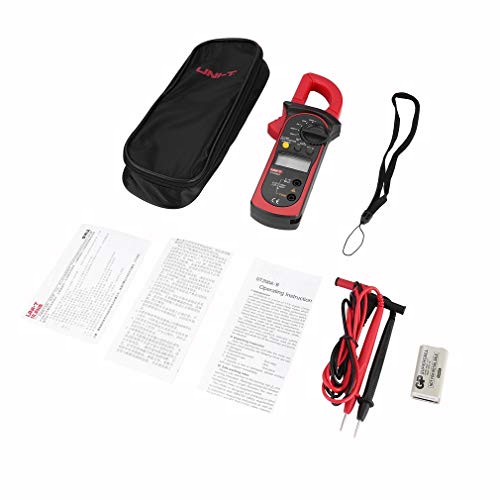

Package List:
1 x Multimeter
1 x Pair of test leads
1 x Carry bag
1 x User manual
