商品説明

Features:
1.Multifunctional, can measure AC/DC voltage, AC current, resistance, diode,continuity,.
2..Stable performance, high precision, respond quickly.
3.LCD screen,auto polarity display.
4.There is buzzing and low battery, overload protection.
5.Data hold, automatic display of polarity.

Description:
1.Portable and lightweight, easy to carry.
2.Auto power off, low battery indication,low power consumption.
3.It's a perfect tool for the laboratory, factory and home.

Specification:

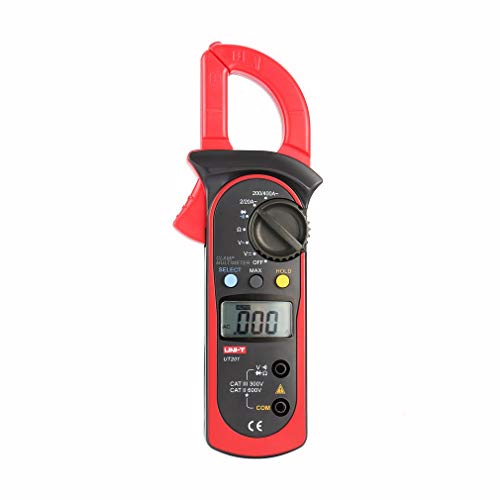

Brand:UNI-T
Model: UT201
Color: Red & gray
Monitor: 1999counts
Working environment: 0-30℃ <75%/30-40℃ <50%/40-50℃ <45%
Storage environment: -20-60℃ <75%

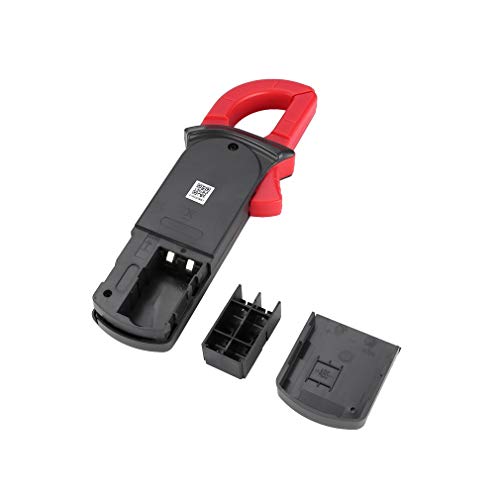

Battery type:2 x 1.5V AAA( not included )
DC voltage range: 200mV/2V/20V/200V/600V
DC voltage accuracy: ±(0.8%+3)/±(0.8%+1)/±(1%+3)
AC voltage range: 2V/20V/200V/600V
AC voltage accuracy: ±(1.2%+5)/±(1.5%+5)
AC current range: 2A/20A/200A/400A
AC current accuracy: ±(2%+8)--±(4%+40)
Resistance range: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
Resistance accuracy: ±(1.2%+2)/±(1%+2)/±(1.2%+2)/±(1.5%+2)
Diode Measurement:Normal circuit voltage calue of silicon PN junction is about 0.5-0.8V
Continuity: Good conductivity is set as:<50Ω buzzer sounds.
Maximum size for opening the clamp heads:diameter 28mm
Item size:214 x 78 x 30mm/ 8.43 x 3.07 x 1.18in
Item weight:191g/6.74oz

Package Information:

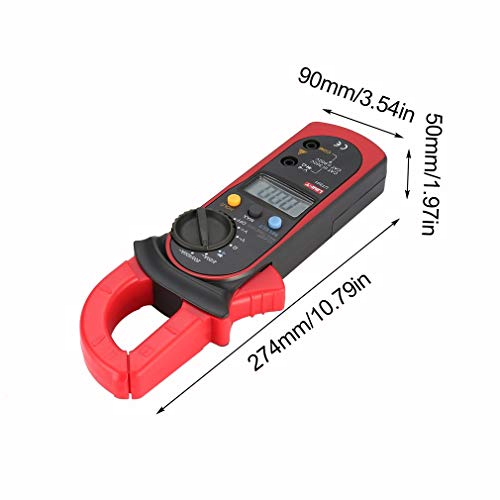

Package Size: 274x 90 x 56mm/ 10.79 x 3.54 x 2.20in
Package Weight: 354g/12.5oz
General Box Package

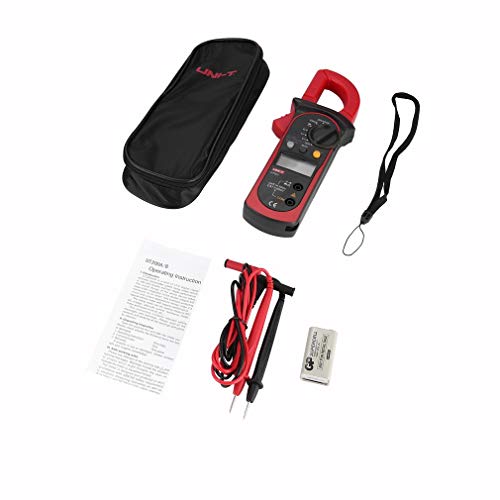

Package List:
1 x Multimeter
1 x Pair of test leads
1 x Carry bag
1 x User manual
