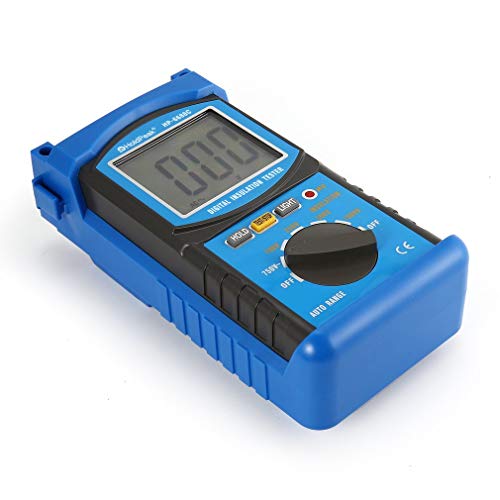

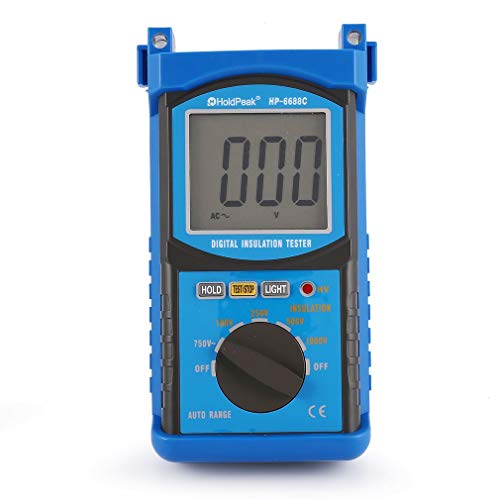

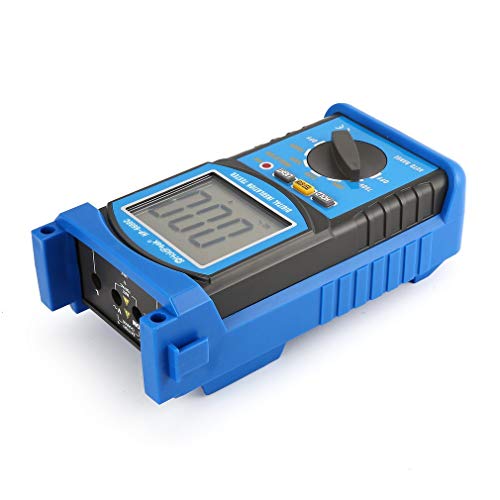

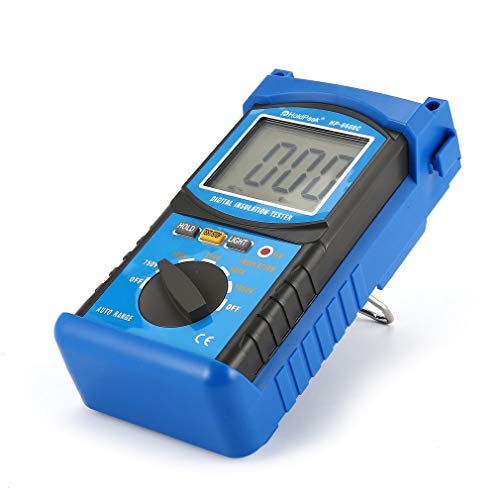

HoldPeak Digita絶縁抵抗テスターMeggerメトホメータ電圧計
- メーカー
- Didasong
- JAN
- 0193450569521
- メーカー品番
- Didasong
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
Features:
1.This Tester apply for all kinds or electric equipment and insulation materials such as transformer, electromotor, cable, switch, appliance, etc
2.Large LCD display(68 * 55mm) with backlight offers clear reading, max. display "1999".
3.Includes data hold, low battery indication and overload protection functions.
With "HV" indicator light, indicates begin to measure voltage.
4.Auto switch the range when resitance measuring.

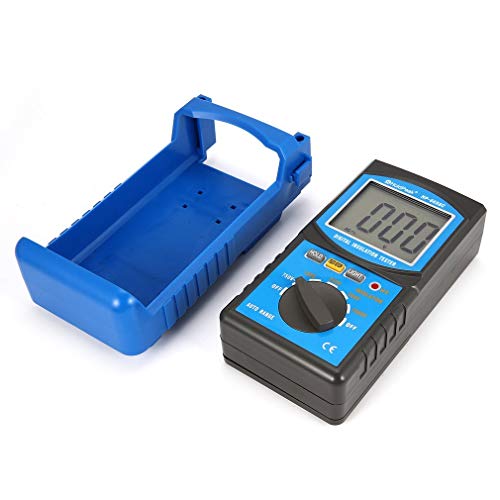

5.Equipped with a back bracket for supporting and protected by rubber for drop protection.
Description:
1.The Digital Insulation Resistance Tester series have high performance, and safe configuration and improved electrocircuit. It is one new item which has more fully function, higher precision, and easier operation.
2.It's also one quakeproof, dustproof and dampproof tester and can fit work environment of outdoor.
3Widely used in telecommunications, railways, mining, etc.
Specification:
Brand:Holdpeak
Model:HP-6688C
Color:Blue
Material: ABS
Display: 1999
Size of LCD: 68×55mm (Height of character is 35mm)
Power: six battery 5# which is 1.5V(Not included)
Environment:Working temperature: 0~40°C <80%RH
Storage temperature: -10～50°C <85%RH
Power supply:1.5V x 6 R6P AA SUM-3 batteries
Insulation tester:5000V
Testing rating voltage:100V/250V/500V/1000V
Output voltage:90-110% Testing rating voltage
Scale:1MΩ-20GΩ
Accuracy: ±(5%+5)
AC Voltage Range:1-750V
Accuracy: ±(2%+5)
Frequency response:40-400Hz

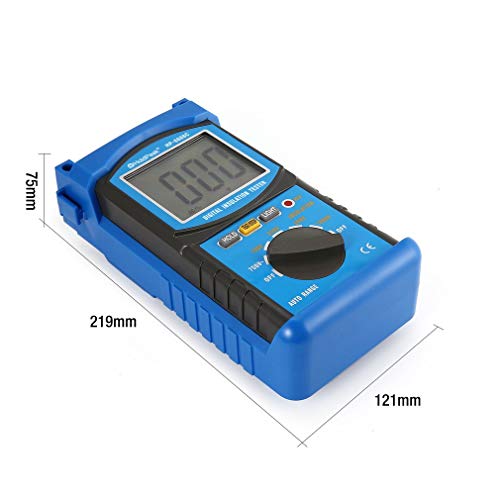

Item size:219mm ×121mm × 75mm
Item weight:739g
Package Information:
Package Size: 265x 235 x 82mm/ 10.43 x 9.25 x 3.23in
Package Weight: 1233g/2.72lb
General Box Package

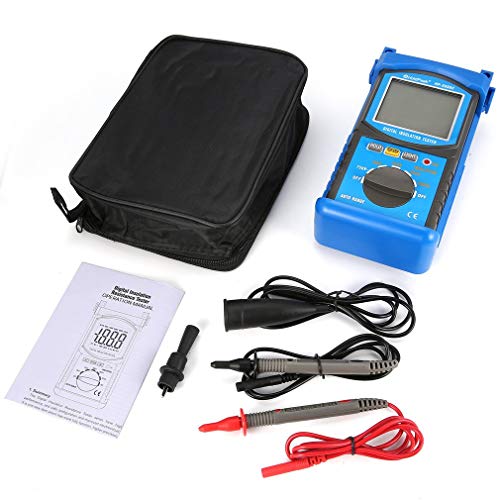

Package List:
1 x Digital insulation tester
1 x Set of measuring lead of the insulation tester
1 x Carry bag
1 x User manual
特記事項
- 1.本器は、変圧器、電動機、ケーブル、スイッチ、電化製品等のあらゆる種類の電気機器及び絶縁材料に適用されます。
- バックライト付き2.Large LCDディスプレイ（68 * 55mm）は、明確な読み取り値を提供します。 "1999"と表示されます。
- 3.データホールド、ローバッテリ表示、過負荷保護機能を内蔵しています。"HV"インジケータが点灯している場合、電圧の測定を開始することを示します。
- 4.Autoは、抵抗測定時のレンジを切り替えます。
- 5.防滴のためにゴムで保護され、保護されたバックブラケットが付いています。
