デジタルクランプメータユニットDC/AC電圧アンプオームダイオードマルチメータ電流計マルチサイト電流耐圧NCVテスタープローブ

商品説明

Features:
1.Multifunctional, can measure AC/DC voltage, AC current, resistance, capacitance,diode,continuity,NCV.
2.Stable performance, high precision, respond quickly.
3.LCD screen,auto polarity display,data hold, automatic display of polarity.
4.There is buzzing and low battery, overload protection.
5.Shatter-resistant,passed 1m drop test.

Description:
1.Portable and lightweight, with cloth bag,easy to carry.
2.Auto power off, low battery indication,low power consumption.
3.It's a perfect tool for the laboratory, factory and home.

Specification:
Brand:UNI-T
Model: UT216A
Color: Red & gray
Monitor: 6000counts
Working environment: 0-30℃ <80%RH/30-40℃ <75%RH/40-50℃ <45%RH
Storage environment: -20-60℃ <75% RH
Battery type:3 x 1.5V AAA( not included )
DC voltage range: 600mV/6V/60V/600V/1000V
DC voltage accuracy: ±(1%+8)/±(0.8%+1)/±(0.8%+3)/ ±(1%+3)
AC voltage range: 6V/60V/600V/750V
AV voltage accuracy: ±(0.8%+3)/±(1%+10)
AC current range: 6A/60A/600A
AC current accuracy: ±(2.5%+3)/±(2.5%+5)
Resistance range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Resistance accuracy: ±(1.2%+2)/±(1%+2)/±(1.2%+2)/ ±(1.5%+5)
Capacitance range: 99.99nF/999.9nF/9.999μF/99.99μF/9.999mF/59.99mF
Capacitance accuracy: ±(4%+25)/±(4%+5)/±10
NCV accuracy:>100Vrms;<10mm(LED/Buzzer indication)
Continuity: Good conductivity is set as:<30Ω buzzer sounds.
Diode Measurement:Normal circuit voltage calue of silicon PN junction is about 0.5-0.8V
Maximum size for opening the clamp heads:diameter 30mm
Max.current conductor size:30mm diameter

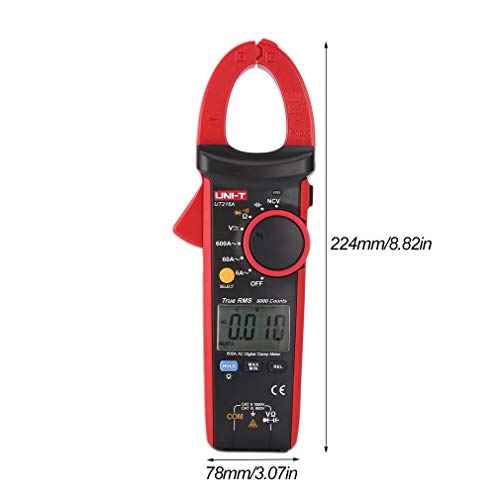

Item size:224 x 78 x 40mm/ 8.82 x 3.07 x 1.57in
Item weight:256g/9.04oz

Package Information:
Package Size: 274x 90 x 56mm/ 10.79 x 3.54 x 2.20in
Package Weight: 465g/1.03lb
General Box Package

Package List:
1 x Multimeter

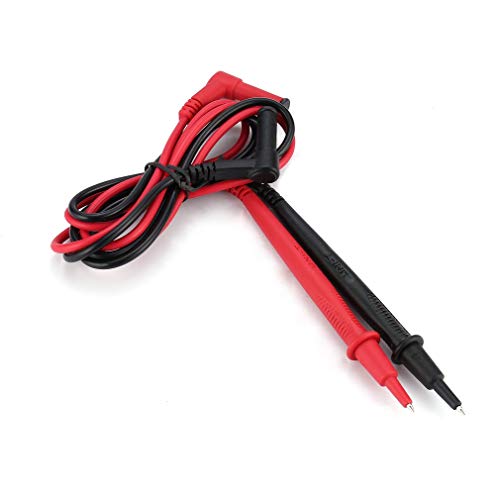

1 x Pair of test leads
1 x Carry bag
1 x User manual
