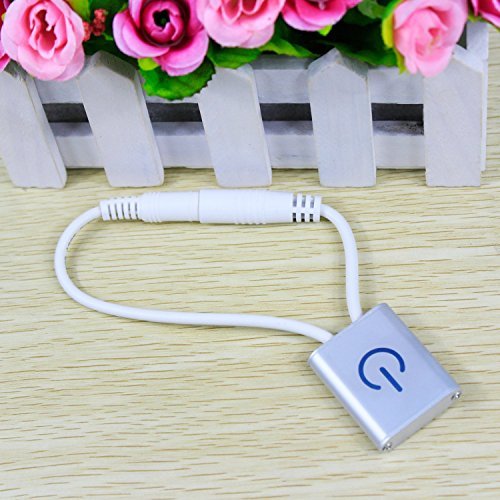

ESUMIC® Dimmer for LED Strips lights LED Ribbon With DC plug Jack (iTouch dimmer White) [並行輸入品]
- メーカー
- ESUMIC®
- ブランド
- ESUMIC
- JAN
- 0701806415554
- メーカー品番
- VF-ITOUCH-DIMMER-WTMT
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
Input voltage: DC 12V/24V. Input Current: 3A. Features:
LED dimmer, it adopts capacitance touch technique. Switch and dimming function can be realized by touching. Dim DC 12V/24V directly driven led lighting products, such as led cabinet light, led rigid bar, led strip and led panel light. It can also be used as on/off touch switch. During the dimming process, it doesn't flicker.
Specification:
Input voltage: DC 12V/24V
Max load input current: 3A
Output channel: 1 channel
Input power: 36W at DC 12V input / 72W at DC 24V input
Neight weight: 23g
Product size: (L)30.8*(W)8.7*(H)38mm
Cable: input 5.5*DC2.1, input cable 100MM, output cable 200MM
Direction:
1) The finger touches dimmer metal body
2) The touch time is less than 5 second, it is on/off switch function
3) The touch time is more than 5 second, it is dimming function, the brightness will be raise to highest or fallen to lowest
4) ON/OFF function: Touch the switch body and then release
5) Dimmer Function: Touch the switch and hold. Brightness will adjusted automatically, either in Min-to-Max or Max-to-Min mode
Package included:
1 * LED iTouch dimmer
特記事項
- 新品、並行輸入品です。Brand new parallel imports from the US.
- Use this simple in-line touch dimmer not only as an On/Off switch, but also to adjust the brightness of your LED strip light. It only takes a light tap to turn it on, and another light tap to turn it off.
- Whether for a test or application, in order to have the best product performance, please make sure to hold the dimmer cable part, instead of the dimmer body. The whole dimmer body is sensitive to touch. For indoor use only-this product is not water-proof nor weatherproof.
- This dimmer has Memory Function,which means it will memorize your last setting even though you turn the main power off.
- Switch and dimming function can be realized by touching
