Elenco P3E Scope Probe 250MHz x1 and x10 [並行輸入品]
- メーカー
- Elenco - THI
- ブランド
- Elenco
- JAN
- 0756619008851
- メーカー品番
- P-3E
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明

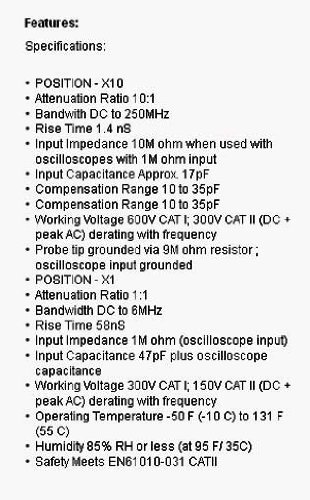

Ideal for use in labs, service shops, schools, home and industry. 250MHz x1 x10 Scope Probe with built-in 3 Position Switch, X1, X10, Ref. Complete w/ Accessories Fits All Scopes w/ BNC Connector Compensation Range 10 to 35pF Length - 60-Inch Features: POSITION - X10 Attenuation Ratio 10:1 Bandwidth DC to 250MHz Rise Time 1.4 n's Input Impedance 10M ohm when used with oscilloscopes with 1M ohm input Input Capacitance Approx. 17pF Compensation Range 10 to 35pF Compensation Range 10 to 35pF Working Voltage 600V CAT I, 300V CAT II (DC + peak AC) dating with frequency Probe tip grounded via 9M ohm resistor , oscilloscope input grounded POSITION - X1 Attenuation Ratio 1:1 Bandwidth DC to 6MHz Rise Time 58nS Input Impedance 1M ohm (oscilloscope input) Input Capacitance 47pF plus oscilloscope capacitance Working Voltage 300V CAT I, 150V CAT II (DC + peak AC) dating with frequency Operating Temperature -50 F (-10 C) to 131 F (55 C) Humidity 85-Percent RH or less (at 95 F/ 35C) Safety Meets EN61010-031 CATII.
特記事項
- 新品、並行輸入品です。Brand new parallel imports from the US.

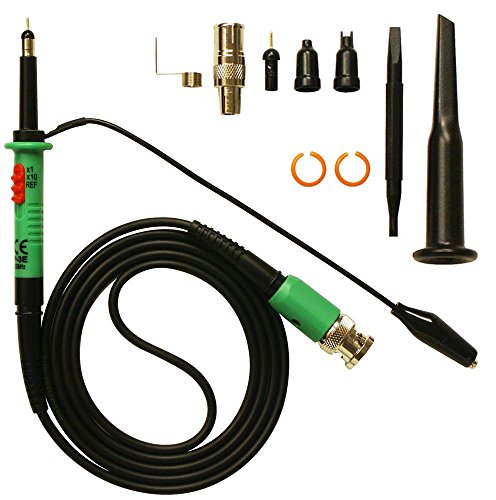

- Built-in 3 Position Switch, X1, X10, Ref
- Complete with Accessories Fits All Scopes with BNC Connector
- Compensation Range 10 to 35pF
- See detailed description for more features
