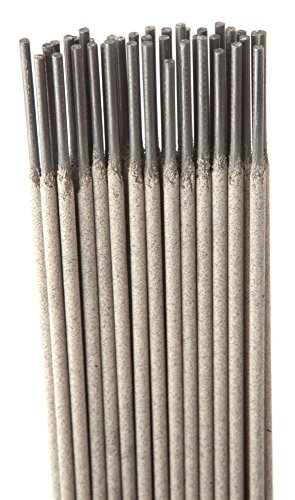

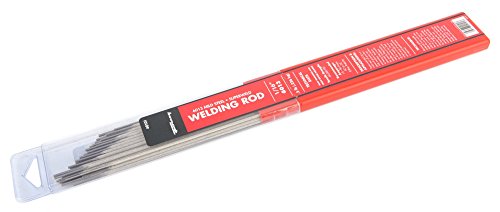

Forney 40101 E6013 Welding Rod, 1/16-Inch, 1/2-Pound [並行輸入品]

商品説明

Excellent wetting action, yielding smooth and flat beads with steady arc with either AC or DC.. Low spatter and excellent slag removal, virtually self cleaning in vertical down fillets. Use on all types of mild steel where ease of operation and good appearance is required in all positions, ideal for vertical down welding. Use for all types of mild steel fabrication. The Forney 40101 6013 Mild Steel superweld Welding Rod is a mild steel, all-position general purpose rod with medium to shallow penetration. Medium to heavy slag is easily removed. Excellent for poorly fitted joints. Smaller sizes of rod are well suited to low heat on thin metals. 1/16-Inch ie.1.59 mm diameter rod. 1/2-Pound ie..226 kg. 6013 Tensile strength is 60,000 PSI Amperage 15-50 amps AC, DCEN, DCEP Either Polarity. Typical Spec Example E6011: E is for electrode. The next two numbers ie.60, 70 or 80 indicates the tensile strength of the rod for example 60,000. The third number tells the welding position; ie.1=All position ie.2=Flat or Horizontal position ie.4=Flat, Horizontal, Overhead and Vertical Down position. The fourth number indicates the type of current to be used and coating of the rod; ie.0=Cellulose Sodium, with deep penetration, use Direct Current Electrode Positive ie.1=Cellulose Potassium, with deep penetration, use AC or Direct Current Electrode Positive, or Direct Current Electrode Negative ie.3=Titania Potassium, with light penetration, use AC or Direct Current Electrode Positive ie.8=Low Hydrogen, Iron Powder, with medium penetration use AC or Direct Current Electrode Positive. Claims for warranty must be made within 90 days of the date of purchase. Proof of purchase required. This warranty does not cover any product that has been subject to misuse, neglect, negligence or accident, or that has been used in any way contrary to the purpose intended.
