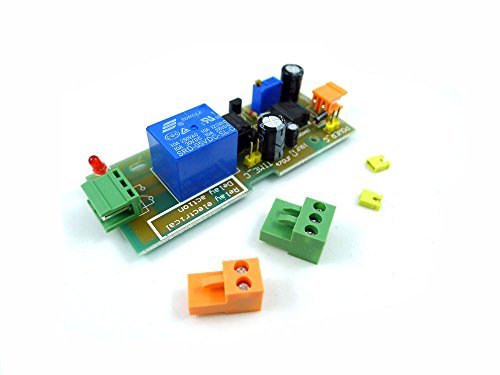

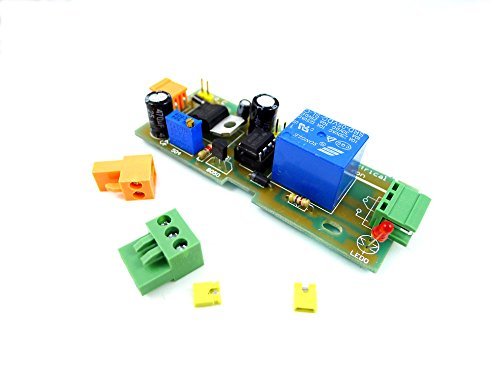

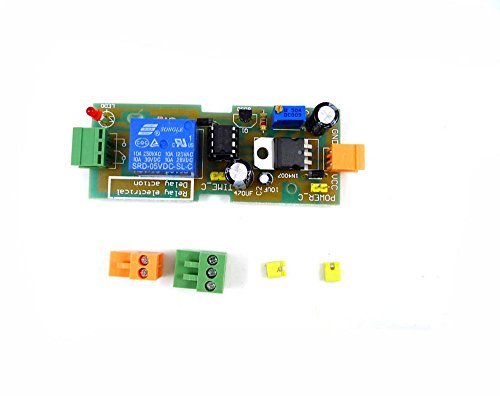

GERI® Timer Relay Switch 1-300 Second 5-12V DC Input Time Over Reset Delay [並行輸入品]

商品説明

Features:
when the preset time is over , the switch RESET
Time over RESET
Main chip: NE555
Board size:82*23mm
Input voltage: 5-12v DC
Adjustable time: 1-300 second
Control voltage: 250vac/10A or 30vdc/10A

Specifications:

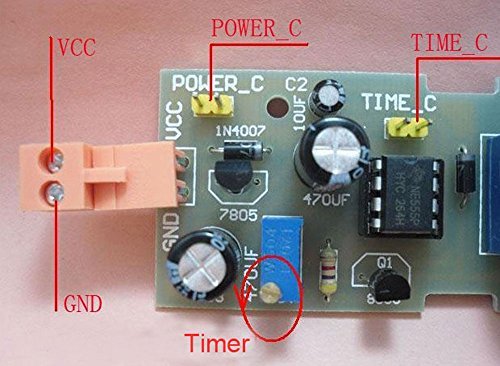

In order to adjust the delay time in a more convenient way, you need a choose a short-circuit cap (TIME_C) ,remove shorting cap (TIME_C), it is 5 seconds delay, to delay from 5 seconds to 5 minutes , need put on the TIME_C shorting cap.
When the input signal 5-7V, POWER_C shorting cap plug;
7V-12V input signal when, POWER_C shorting cap removed.

Package include:
100% Brand New
1 pc xNE555 Timer Delay Switch 1-300 second 5-12v DC input TIME OVER RESET
with connectors

Worry-free Warranty:
12 months worry-free product guarantee
