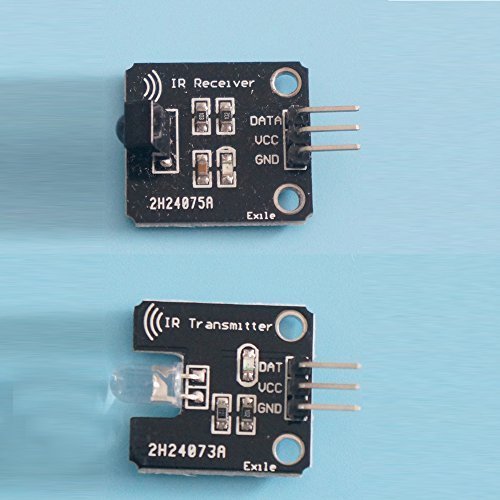

MagicW Digital 38khz Ir Receiver 38khz Ir Transmitter Sensor Module Kit for Arduino Compatible [並行輸入品]

商品説明

Specification:

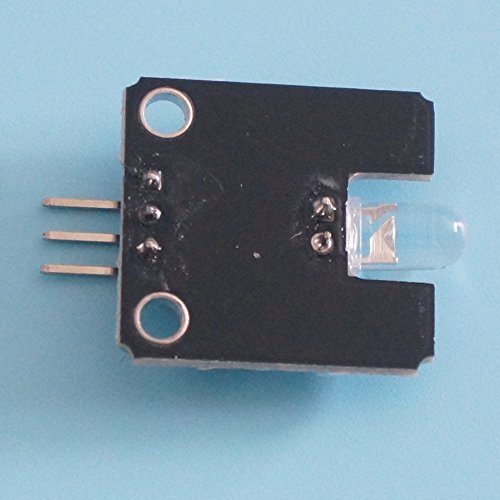

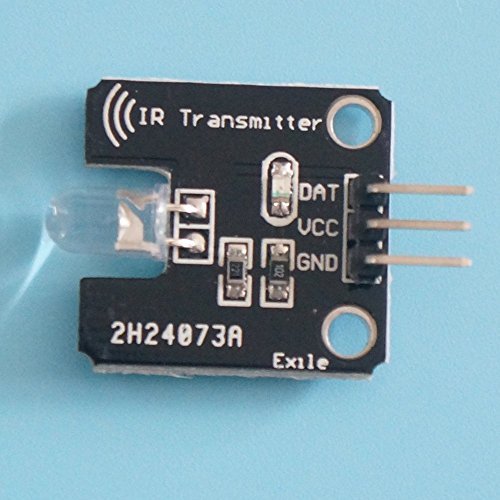

1、Digital 38KHz IR Transmitter Sensor

Description:

IR is widely used in remote control. With this IR transmitter, the Arduino project is able to transmit command to any IR remote Receiver if you have the right decoder.

Well, it will be also easy to make your own IR controller using IR Receiver.

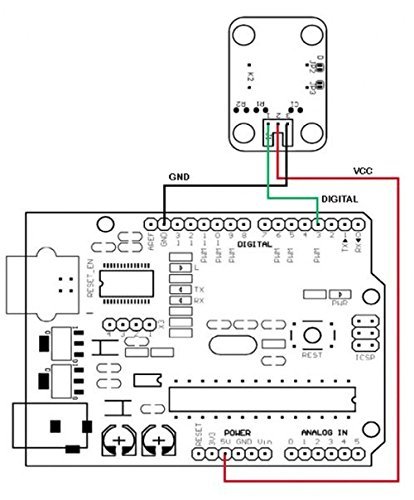

38KHz IR Transmitter Sensor pin definitions : (1) Output (2) Vcc (3) GND

Features:

1、Basedon the 38KHz IR Transmitter Sensor

2、Can be used for remote control

3、Power Supply: 5V

4、Interface: Digital

5、Modulate Frequency : 38Khz

6、Pin Definitions: (1) Output (2) Vcc (3) GND

7、Can be compatible with Wrobot Digital 38KHz IR Receiver Sensor

8、Apply to a variety of platforms including Arduino/51/AVR/ARM

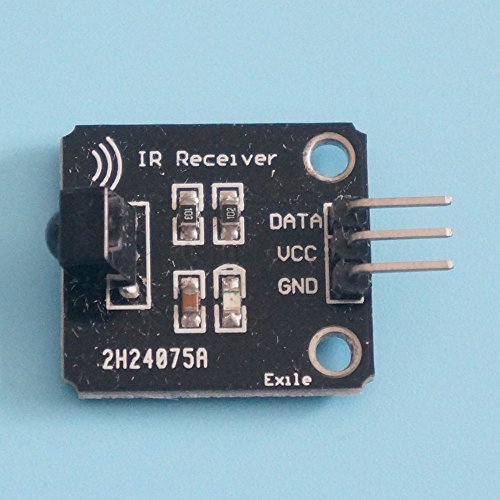

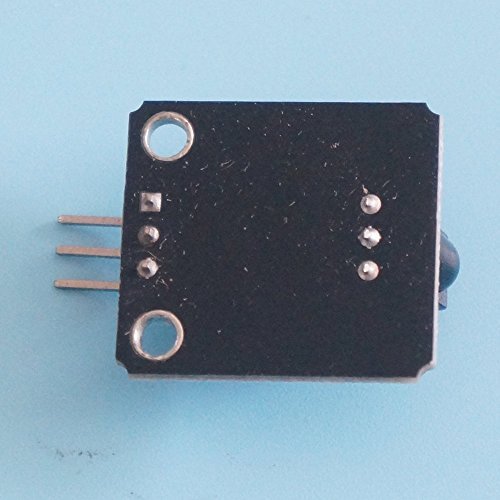

2、Digital 38KHz IR Receiver Sensor

Description :

IR is widely used in remote control. With this IR receiver, the Arduino project is able to receive command from any IR remoter controller if you have the right decoder.

Well, it will be also easy to make your own IR controller using IR transmitter.

38KHz IR Receiver Sensor pin definitions : (1) Output (2) Vcc (3) GND

Features :

1、Based on the 38KHz IR Receiver Sensor

2、Can be used for remoter control

3、Power Supply : 5V

4、Interface : Digital

5、Modulate Frequency : 38Khz

6、Pin Definitions : (1) Output (2) Vcc (3) GND

7、Can be compatible with Wrobot Digital 38KHz IR Transmitter Sensor
